LM-40 Aluminum Powder Making Machine

Hydraulic Aluminum Powder & Aluminum Chip Processing Machine

1. Product Overview

The LM-40 Aluminum Powder Making Machine is a specialized processing machine designed for converting pre-processed aluminum chips or small aluminum particles into aluminum powder or granulated aluminum particles through a high-speed vortex crushing and granulation process.

The machine is developed as a supporting product for the LX-700 Aluminum Chip Processing Machine and can be integrated into an aluminum chip and aluminum powder processing line.

With a horizontal structure, convenient maintenance, water-cooled operation and an automatic material collection system, the LM-40 is suitable for continuous processing applications where controlled particle size and stable production capacity are required.

It can be used together with aluminum chip cutting, crushing, granulating and passivation equipment to form an integrated aluminum material processing system.

2. Main Applications

The LM-40 can be used for processing aluminum chips and aluminum particles generated from aluminum and aluminum-alloy machining operations.

Typical applications include:

Aluminum chip processing

Aluminum powder production

Aluminum particle processing

Aluminum alloy particle processing

Aluminum chip granulation

Aluminum powder processing

Aluminum recycling and secondary processing

Chemical-industry aluminum material processing

Aluminum materials for chemical applications

Aluminum chip preparation for downstream processing

Depending on the raw material characteristics and required final product specifications, the machine can be incorporated into a complete aluminum chip processing and powder production line.

3. Machine Structure

The LM-40 Aluminum Powder Making Machine mainly consists of:

Stator

Rotor

Machine Base

Main Drive Motor

Electrical Control System

Material Discharge / Collection System

Cooling System

The main machine adopts a horizontal configuration.

The machine housing can be opened along the centerline, providing convenient access for:

Routine inspection

Internal cleaning

Maintenance

Wear-part inspection

Replacement of internal components

This structure helps simplify maintenance and reduce downtime during operation.

4. Working Principle

The LM-40 operates based on a high-speed vortex crushing and granulation principle.

During operation, the rotor rotates at high speed and generates a strong airflow and vortex inside the processing chamber.

The aluminum chips entering the machine are subjected to high-speed airflow, centrifugal force and mechanical impact inside the chamber. The material is progressively processed against the internal liner and other working components.

The processed material then enters the granulation chamber, where further size reduction and particle shaping take place.

When the particle size and particle shape reach the specified processing requirements, the processed material is carried by the airflow out of the processing chamber and transferred to the material discharge and collection system.

The primary cooling method is water cooling, supplemented by air cooling, helping control the operating temperature during continuous processing.

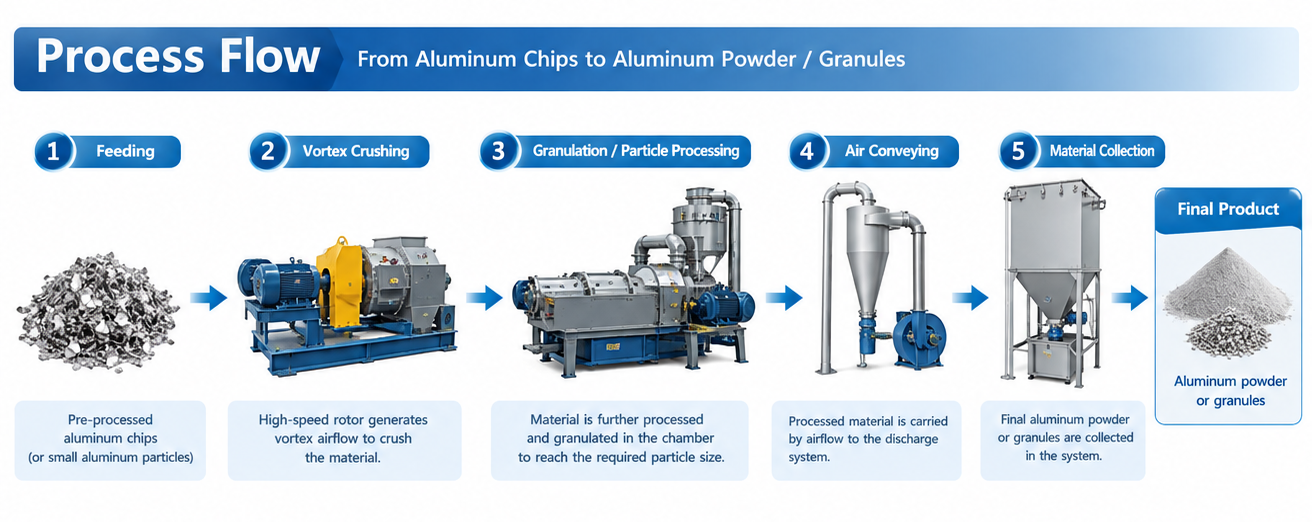

Process Flow

Aluminum Chips → Feeding → Vortex Crushing → Particle Processing / Granulation → Air Conveying → Material Collection

5. Main Features

Horizontal Machine Design

The horizontal configuration provides convenient access to the processing chamber and facilitates inspection, cleaning and maintenance.

High-Speed Vortex Processing

The high-speed rotor generates a strong vortex airflow for efficient processing of aluminum chips and small aluminum particles.

Water-Cooled Operation

The main cooling system uses circulating cooling water to help control the machine operating temperature during continuous production.

Auxiliary Air Cooling

An auxiliary air-cooling system provides additional heat dissipation during operation.

Integrated Material Collection

Processed material is conveyed to the discharge and collection system, reducing manual handling.

Adjustable Processing Conditions

Processing performance can be adjusted according to the characteristics of the feed material and the required final particle specifications.

Suitable for Production Lines

The machine can be integrated with aluminum chip cutting, crushing, granulation and passivation equipment to form a complete processing line.

6. Technical Specifications

Note: Actual capacity and final particle characteristics may vary depending on aluminum alloy grade, feed material size, feed condition, moisture, processing requirements and other operating conditions.

7. Recommended Raw Material

The LM-40 is designed for pre-processed aluminum chips or small aluminum particles.

Recommended Feed Size

≤ 4 × 6 × 3 mm

For optimum processing performance, the feed material should be relatively uniform in size and free from excessive foreign matter.

For special aluminum alloys or different feed conditions, the actual processing parameters should be confirmed through technical evaluation or testing.

8. Production Capacity

The nominal production capacity of the LM-40 is:

150–200 kg/h

The actual production capacity depends on:

Aluminum alloy type

Feed material dimensions

Feed material condition

Required final particle size

Feeding rate

Operating conditions

Cooling conditions

For specific production requirements, our engineering team can evaluate the complete processing configuration and recommend suitable auxiliary equipment.

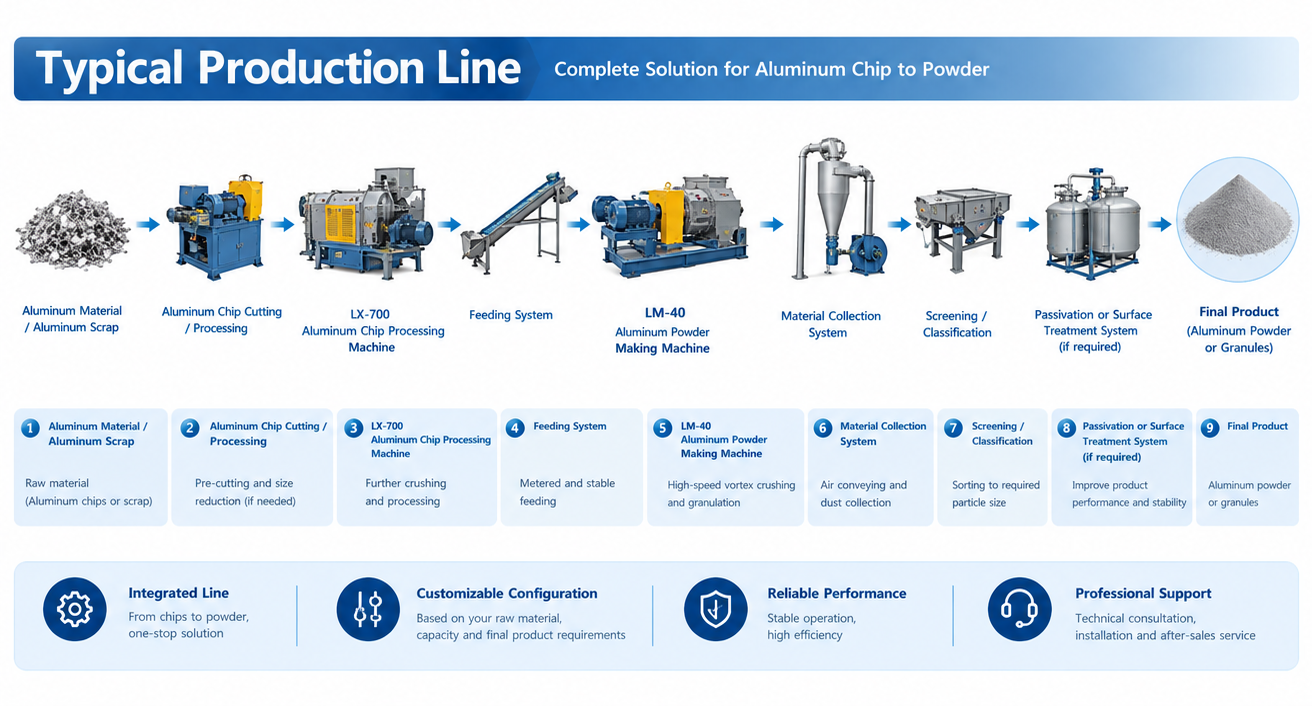

9. Complete Aluminum Processing Line

The LM-40 can be used as part of a complete aluminum chip and powder processing system.

A typical production line may include:

The actual configuration can be customized according to the customer's raw material, required production capacity and final product specifications.

10. Related Aluminum Processing Equipment

Our company provides a range of equipment for aluminum and aluminum-alloy material processing, including:

Aluminum Powder Making Machines

Aluminum Powder Processing Equipment

Aluminum Powder Production Equipment

Aluminum Chip Processing Machines

Aluminum Chip Cutting Machines

Hydraulic Aluminum Chip Machines

Automatic Aluminum Chip Processing Machines

Aluminum Chip Granulators

Aluminum Alloy Particle Processing Machines

Aluminum Alloy Particle Milling Machines

Aluminum Alloy Particle Cutting Machines

Aluminum Alloy Granulation Equipment

Aluminum Powder Production Lines

Automatic Aluminum Powder Production Lines

Aluminum Powder Passivation Machines

Aluminum Chip Water-Cooling / Processing Equipment

Chemical-Industry Aluminum Chip Processing Equipment

Customized Aluminum Chip Processing Equipment

11. Why Choose Our Aluminum Processing Equipment?

Our aluminum processing equipment can be configured according to different raw materials and production requirements.

We can provide:

Complete processing equipment

Customized production-line design

Equipment integration

Technical consultation

Production capacity evaluation

Equipment commissioning support

After-sales technical support

For customers requiring a complete aluminum chip-to-powder processing solution, the LM-40 can be combined with upstream and downstream equipment to create an integrated production system.
