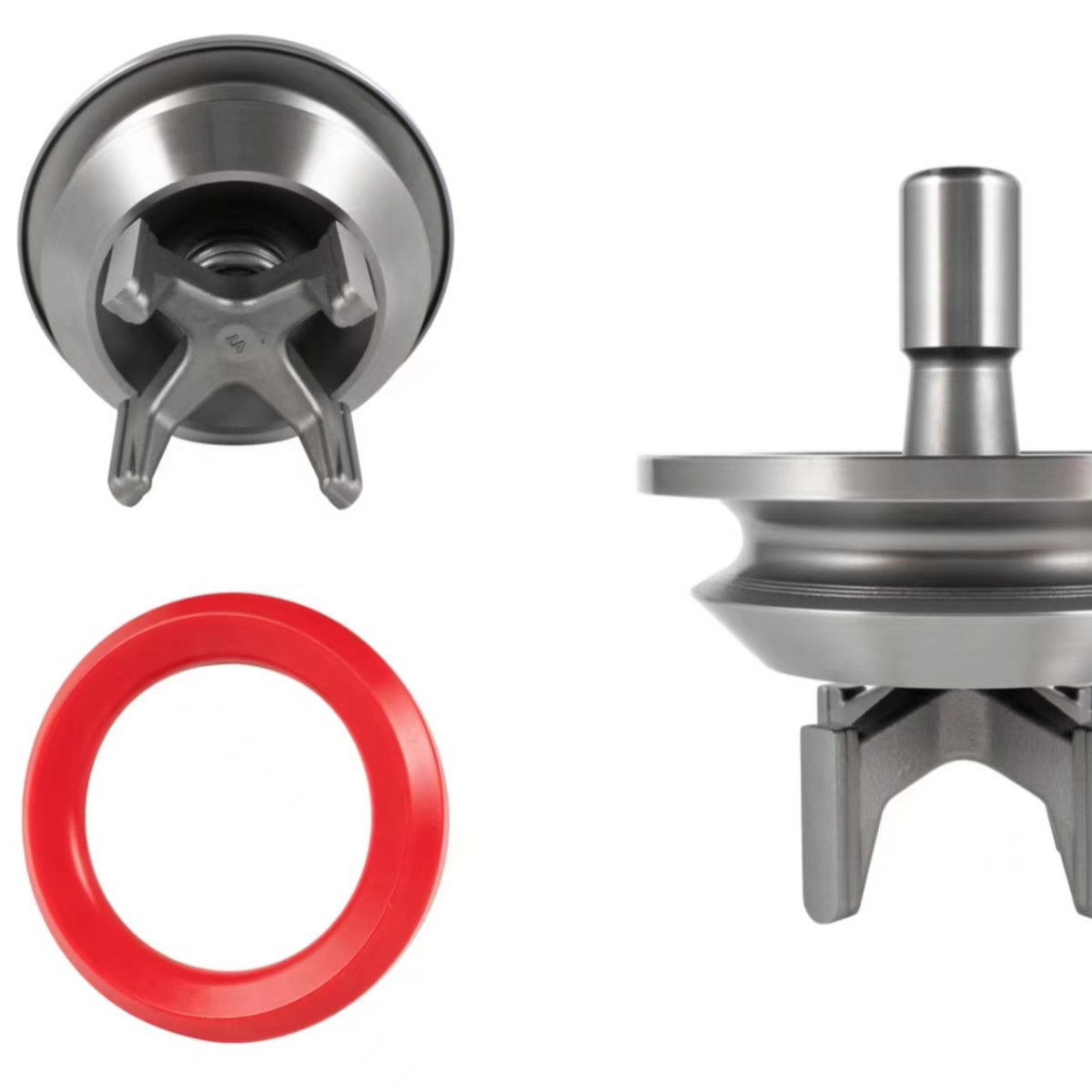

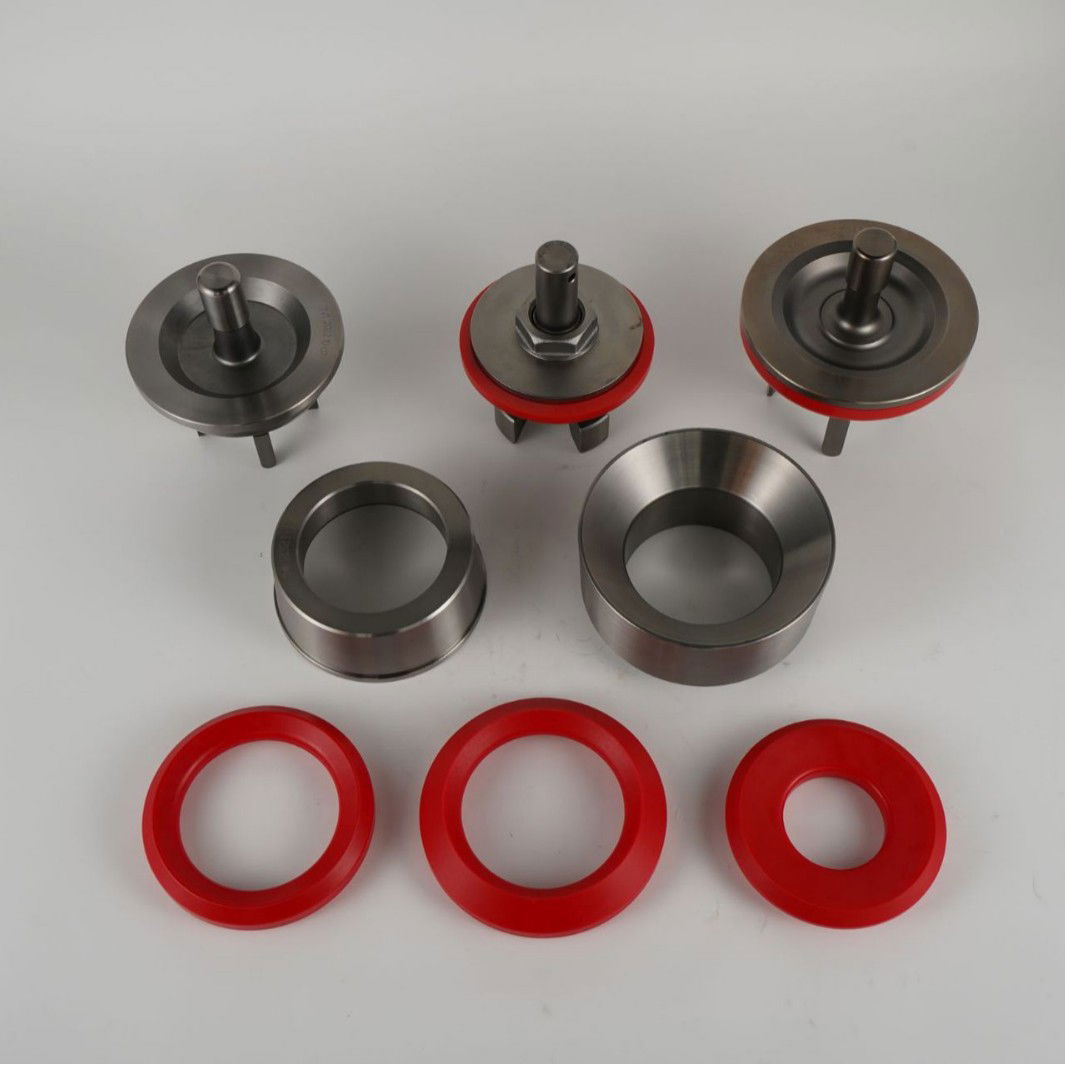

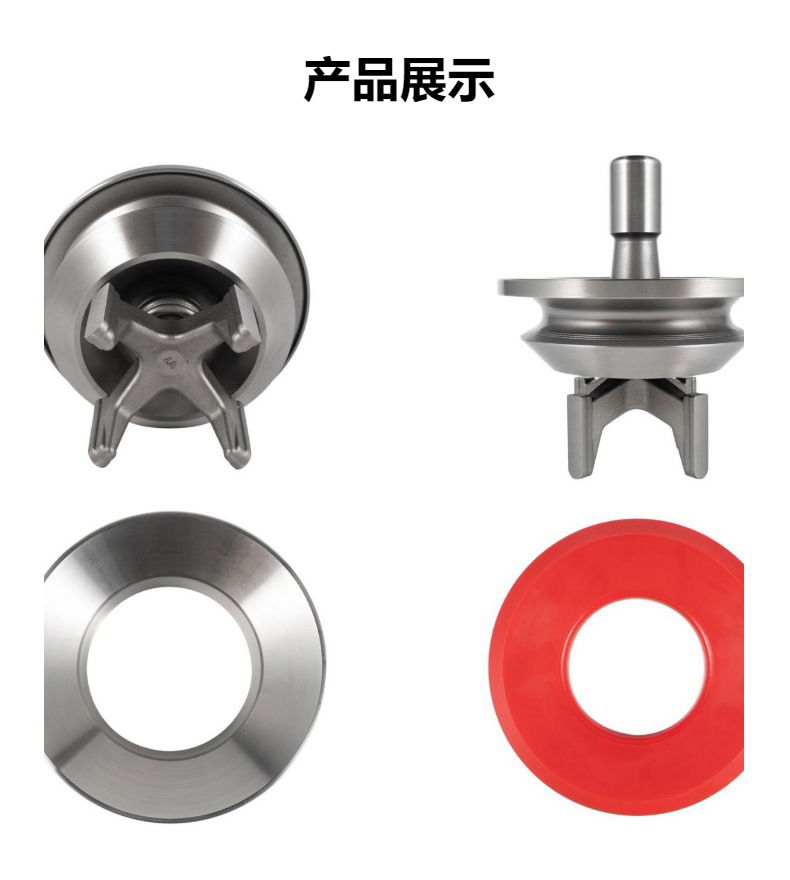

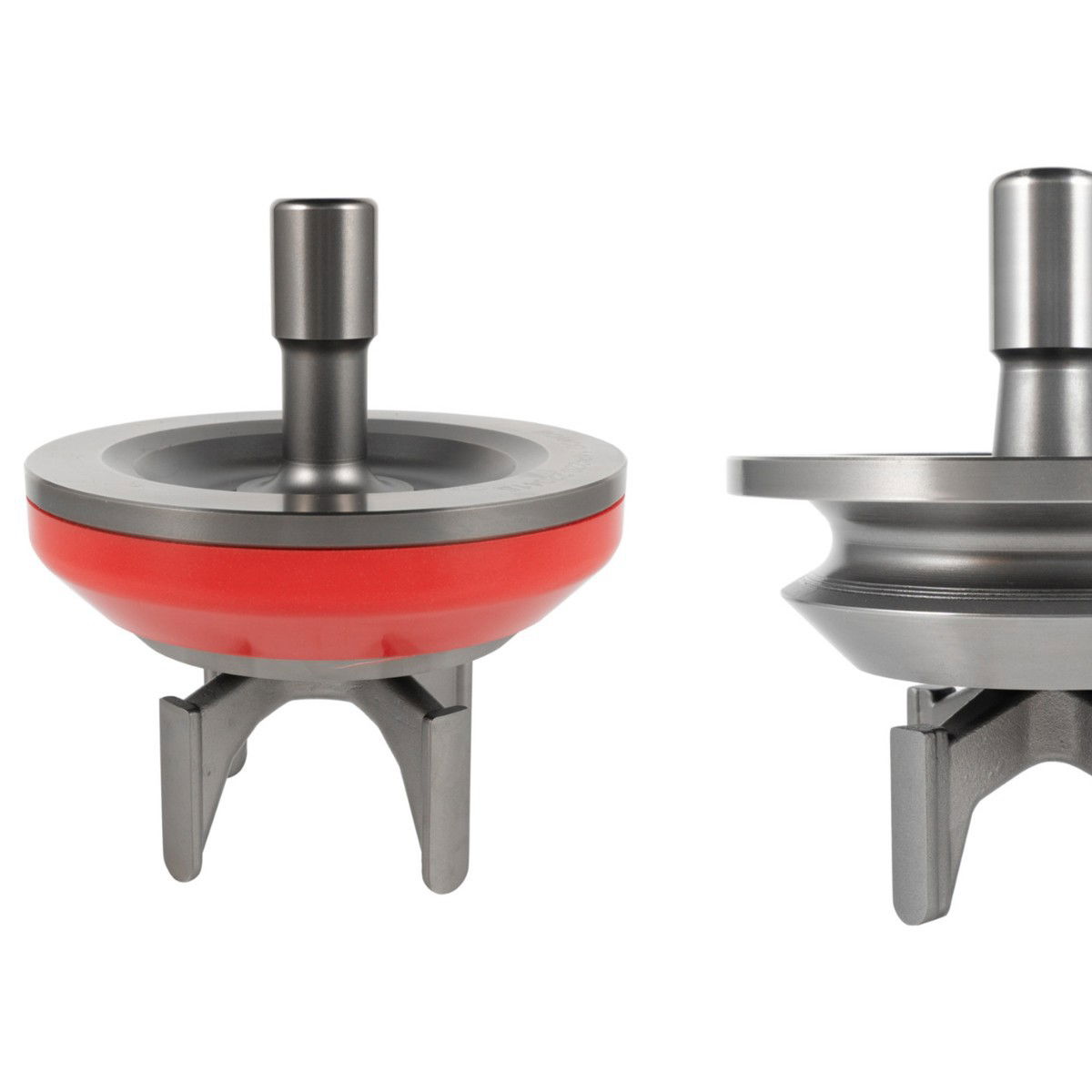

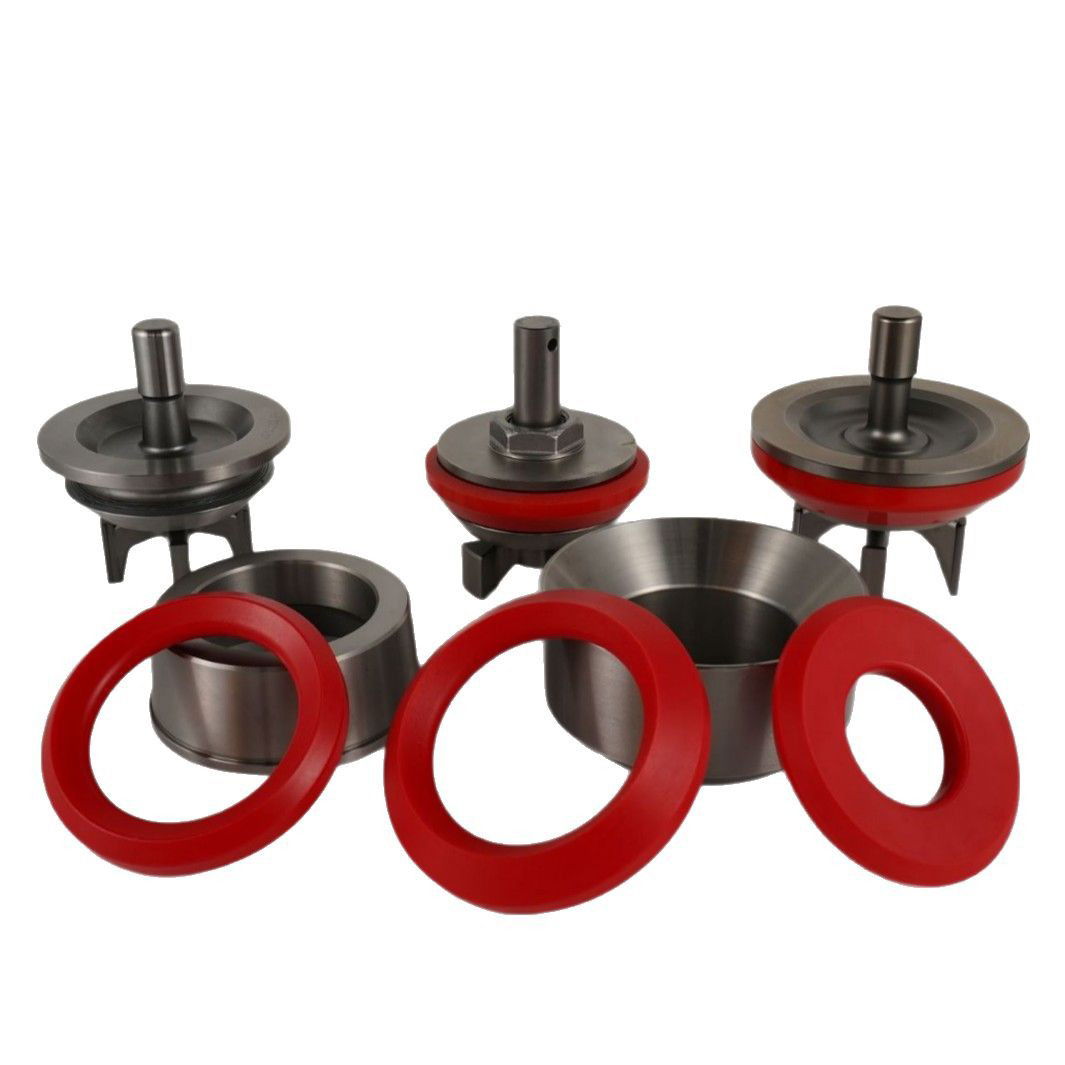

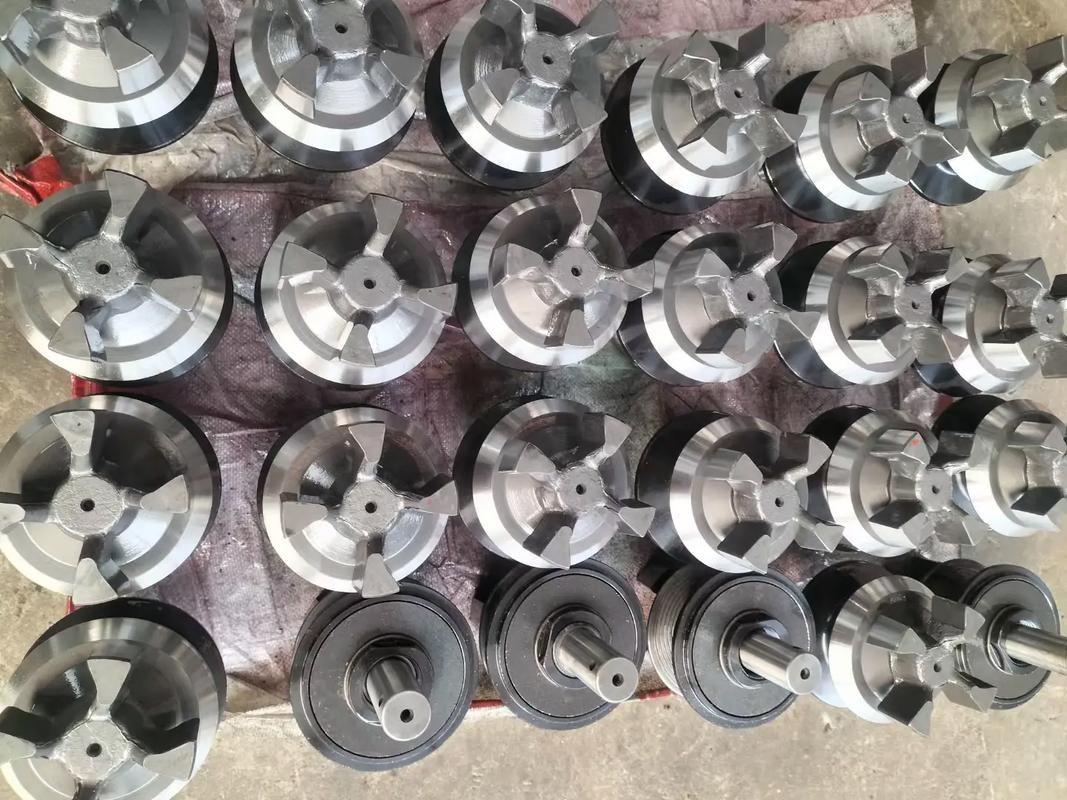

Valve assembly for F1300/F1600 Mud Pumps slush pumps and fracturing pumps
The Valve Assembly for F1300/F1600 Mud Pumps is a high-quality component designed for optimal performance in slush pumps and fracturing pumps. Manufactured with precision, it ensures reliability and durability even in demanding operational environments, making it an essential choice for industries requiring effective and efficient pump operations.
- Brand: Sunjoy
- SKU: 89
- Shipping:
- Return Policy: <div class="return-policy"> <h2>No-Risk Return Policy</h2> <p>Not 100% satisfied? We make returns easy.</p> <div class="highlight-box"> <h3>🔄 30-Day Returns</h3> <p>Return any item in original condition within 30 days for a full refund.</p> </div> <h3>📦 How to Return:</h3> <ol> <li><strong>Contact us</strong> at returns@yourstore.com with your order number</li> <li><strong>Get approval</strong> + return shipping label (if applicable)</li> <li><strong>Ship back</strong> via prepaid method</li> </ol> <h3>❗ Important Notes:</h3> <ul> <li>Refunds exclude original shipping fees</li> <li>Customs duties on international returns are non-refundable</li> <li>Final sale items marked "Non-returnable" are excluded</li> </ul> <p>🔔 <em>Need help? Chat live with our support team → [右下角聊天图标]</em></p> </div>
Learn More
Detailed Summary and Analysis of Valve Body and Valve Seat for F1300 Pump
The F1300 pump typically refers to the triplex single-acting horizontal reciprocating piston pump produced by Baoji Oilfield Machinery Co., Ltd., widely used in petroleum drilling. It is the standard mud pump for ZJ30 and ZJ40 rigs. Its valve assembly operates under extremely harsh conditions (high pressure, highly abrasive mud), placing stringent demands on the valve components.
I. Basic Information of F1300 Pump Valve Assembly
Pump Model: F-1300 Triplex Single-Acting Mud Pump
Valve Type: Typically disc valve or guided cone valve. The F1300 commonly uses disc valves, where the valve body is a flat disc, and the valve seat is a perforated flat plate.
Installation Position: Divided into suction valves and discharge valves. Both share the same structural principle but differ in size, spring pressure, and installation location. Discharge valves endure higher pressure and more severe wear.
Key Feature: To withstand high pressure and mud abrasiveness, the valve seats of F1300 pumps generally employ tungsten carbide (WC) inserts—i.e., the seat base is alloy steel, while the sealing surface is embedded with an ultra-wear-resistant tungsten carbide ring.
II. Key Parameters (Typical Values)
Below are typical parameters for the F1300 pump valve assembly. Always refer to actual parts or the manufacturer’s latest drawings for precise dimensions.
No. | Category | Parameter Name | Typical Value/Description |
1 | Dimensions & Structure | Nominal Diameter | Suction Valve: 7 Inch; Discharge Valve: 6 Inch (classic configuration; variants exist) |
2 | Outer Diameter/Installation Size | Must match the pump head valve box bore; requires specialized tools for press-fitting. | |
3 | Structural Type | Tungsten carbide insert. Seat: alloy steel base + WC ring; Valve body: solid alloy steel or WC-inserted. | |
4 | Materials & Process | Valve Seat Material | Base: 42CrMo or 35CrMo alloy steel; Sealing Surface: Tungsten Carbide (WC) insert ring. |
5 | Valve Body Material | Option 1 (Economy): 40Cr or 35CrMo, surface-hardened to HRC 45-55; Option 2 (High Performance): WC-inserted or solid sintered WC. | |
6 | Hardness Matching | Best practice: Valve body hardness should be slightly lower (2-3 HRC) than the seat to prioritize wear on the replaceable body, protecting the costly seat. | |
7 | Performance | Rated Working Pressure | Up to 34.3 MPa (5000 psi) or higher, depending on pump configuration. |
1 | Dimensions & Structure | Nominal Diameter | Suction Valve: 7 Inch; Discharge Valve: 6 Inch (classic configuration; variants exist) |
2 | Outer Diameter/Installation Size | Must match the pump head valve box bore; requires specialized tools for press-fitting. |
III. In-Depth Analysis
Material Necessity: Tungsten Carbide
Reason: High pressure and abrasive particles (e.g., quartz sand) in mud rapidly wear down standard alloy steel valves, leading to seal failure and efficiency loss.
Advantage: WC’s hardness (HRA ≥ 88) surpasses abrasive particles, offering unmatched wear resistance. Despite higher upfront cost, it extends service life and reduces downtime, improving overall cost-effectiveness.
Failure Modes
Normal Failure: Uniform wear on sealing surfaces creates micro-grooves, causing leakage and pressure drop.
Abnormal Failure:
Cracking/Chipping: WC’s low impact resistance makes it prone to cracking if struck by large debris (e.g., bolts) or due to spring failure.
Insert Detachment: WC ring may loosen if the interference fit with the alloy steel base fails.
Corrosion: Abnormal pH or corrosive mud can erode the base, loosening the insert.
Brand & Quality Variations
Market suppliers vary significantly in quality, primarily due to:
WC Ring Quality: Tungsten powder granularity, cobalt content, and sintering process affect wear/impact resistance.
Heat Treatment: Base material tempering determines strength and support.
Precision Fit: Sealing surface angle and smoothness impact sealing and longevity.
Reputable brands (e.g., Baoji OEM, XX Hong, Sichuan specialists) offer more reliable products.
IV. Selection & Maintenance Recommendations
Always Replace in Pairs: Never replace only the valve body or seat. Worn seats cannot seal properly with new bodies, accelerating failure.
Verify Dimensions: Confirm whether the part is for suction/discharge and check diameter (6" or 7").
Material Tier Selection:
Standard Drilling: WC-insert seat + hardened alloy steel body (best cost-performance).
Extreme Conditions (Ultra-High Pressure/Sand): Opt for WC-insert bodies and seats for maximum lifespan.
Installation Protocol: Use dedicated tools to press-fit seats evenly; avoid hammering to prevent cracks. Clean valve box bores before installation.
Inspect Related Parts: Check springs, guides, and retainers for fatigue damage during replacement.
Summary
For the F1300 mud pump, the valve body and seat are critical, high-wear components. Their core features are large diameters (6"/7") and WC sealing surfaces. Proper selection, hardness matching, installation, and maintenance are key to maximizing lifespan, efficiency, and cost savings. Prioritize quality and reliability over upfront price.
