The cementing packer 6-5/8" 17-32lb/ft not less than 120°C
The cementing packer 6-5/8 is a specialized tool used in the oil and gas industry, primarily for effectively sealing and isolating well sections during cementing operations. It is designed for durability and efficiency, accommodating specific wellbore sizes to ensure reliable performance.
- SKU: 3
- Shipping:
- Return Policy: <div class="return-policy"> <h2>No-Risk Return Policy</h2> <p>Not 100% satisfied? We make returns easy.</p> <div class="highlight-box"> <h3>🔄 30-Day Returns</h3> <p>Return any item in original condition within 30 days for a full refund.</p> </div> <h3>📦 How to Return:</h3> <ol> <li><strong>Contact us</strong> at returns@yourstore.com with your order number</li> <li><strong>Get approval</strong> + return shipping label (if applicable)</li> <li><strong>Ship back</strong> via prepaid method</li> </ol> <h3>❗ Important Notes:</h3> <ul> <li>Refunds exclude original shipping fees</li> <li>Customs duties on international returns are non-refundable</li> <li>Final sale items marked "Non-returnable" are excluded</li> </ul> <p>🔔 <em>Need help? Chat live with our support team → [右下角聊天图标]</em></p> </div>
Learn More
The cementing packer 6-5/8" 17-32lb/ft not less than 120°C
Products information
--------------------------

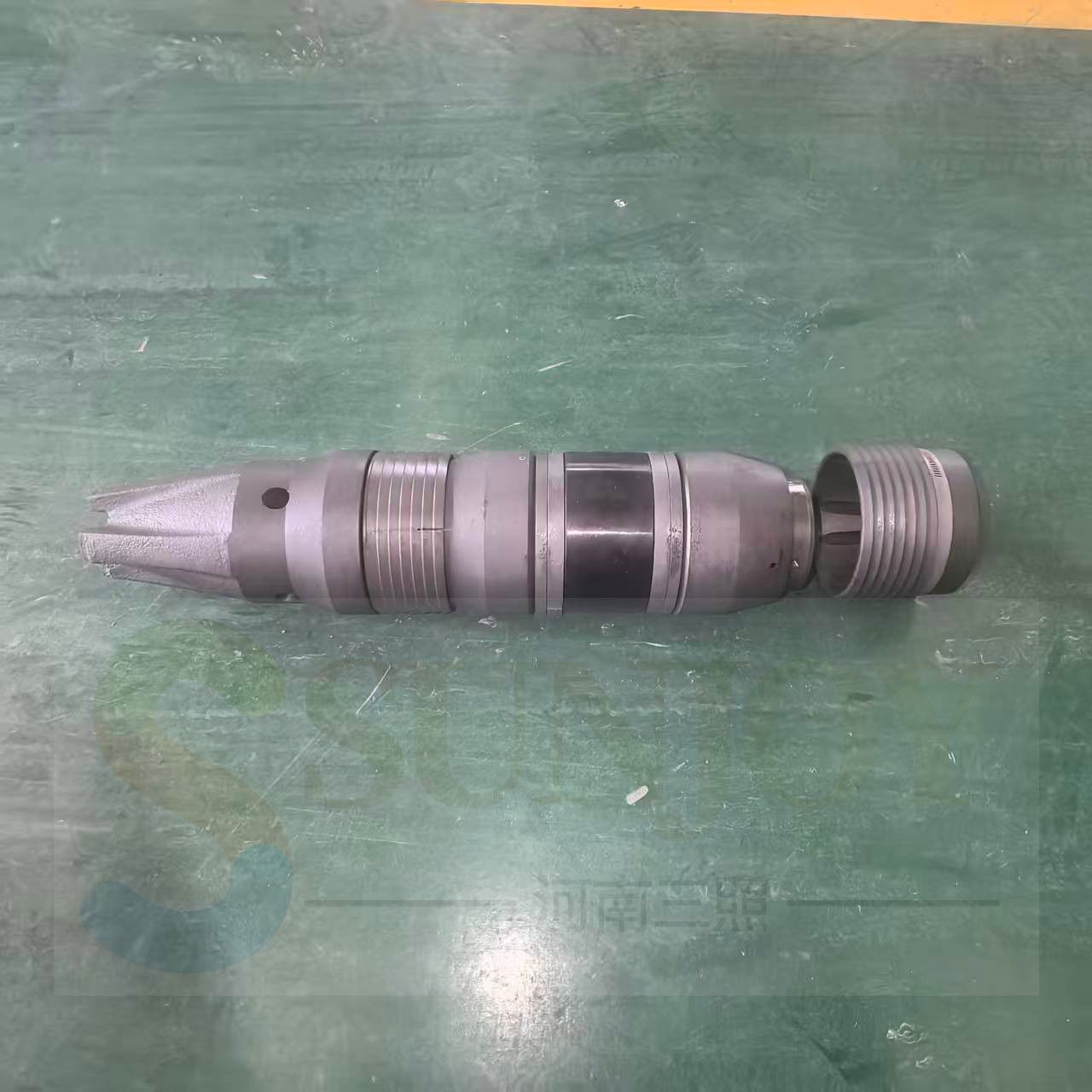

The cementing packer is a tool used for pressure cementing and repair-isolation operations.
The sliding sleeve valve is controlled from the surface by moving the sealing assembly along the tubing string—simply lifting it (the valve closes) or lowering it (the valve opens).
The cementing packer is designed for quick and easy drill-out and is ideal for long-term repair and isolation operations conducted at great depths, under high temperatures, or in high-risk conditions. It can be set using a mechanical setting tool.
All components are locked against rotation to simplify drill-out operations. Retaining rings help prevent extrusion of the sealing element.
Technical specifications:
Nominal casing diameter: 168.3 mm (6 5/8 in).
Casing weight range: 17–32 lb/ft.
Minimum internal casing diameter: 142.8 mm (5.625 in).
Maximum internal casing diameter: 154.8 mm (6.094 in).
Bridge plug outer diameter: 136.5 mm (5.375 in).
Maximum working pressure, not less than: 68.9 MPa (10,000 psi).
Maximum operating temperature, not less than, °F [°C]: 250 [120].
The cementing packer (bridge plug) shall be manufactured in accordance with the requirements of GOST ISO 14310-2014.
The cementing packer (bridge plug) shall be manufactured according to the drawing provided in Appendix No. 1 to this technical specification.

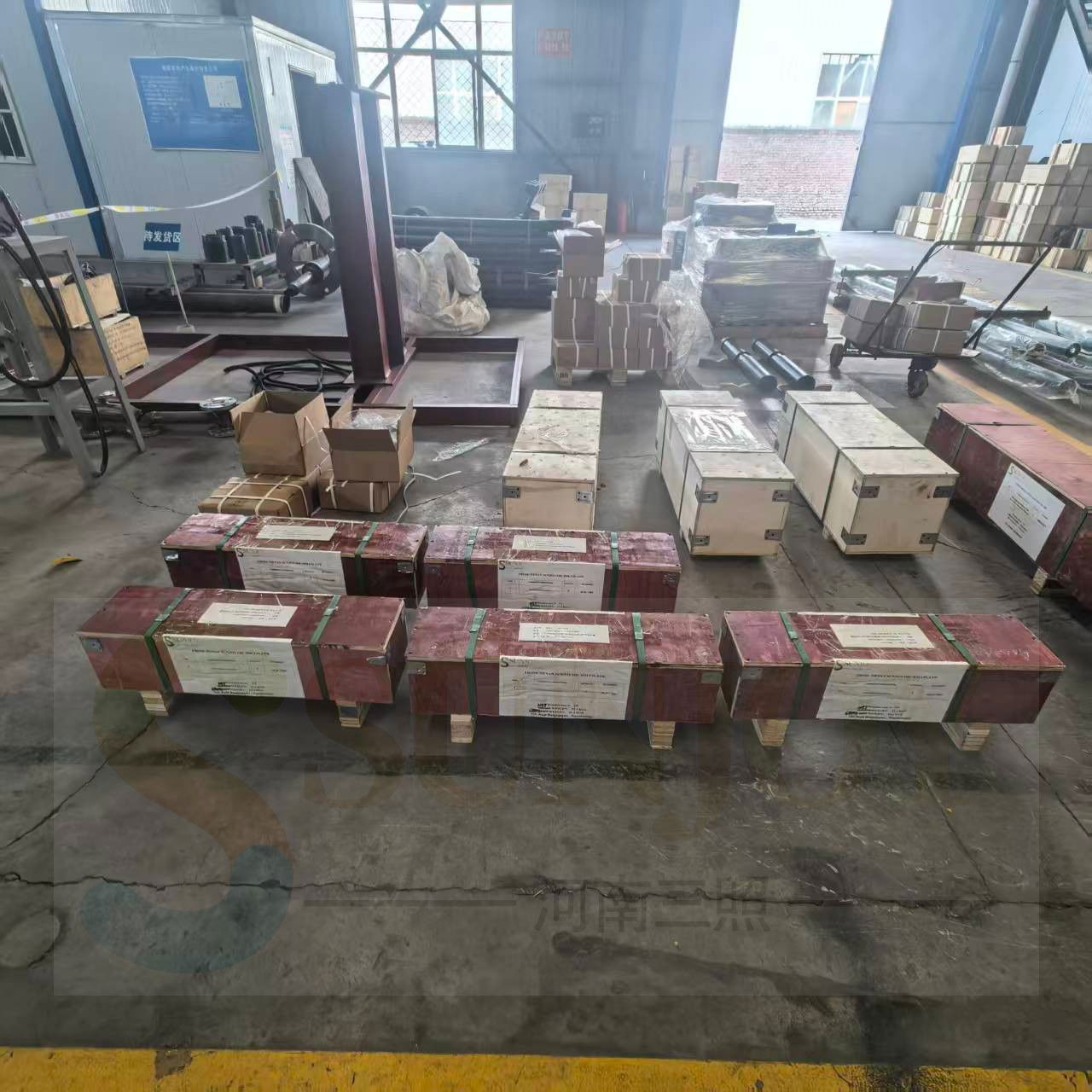

The package of The cementing packer 6-5/8" 17-32lb/ft not less than 120°C
--------------------

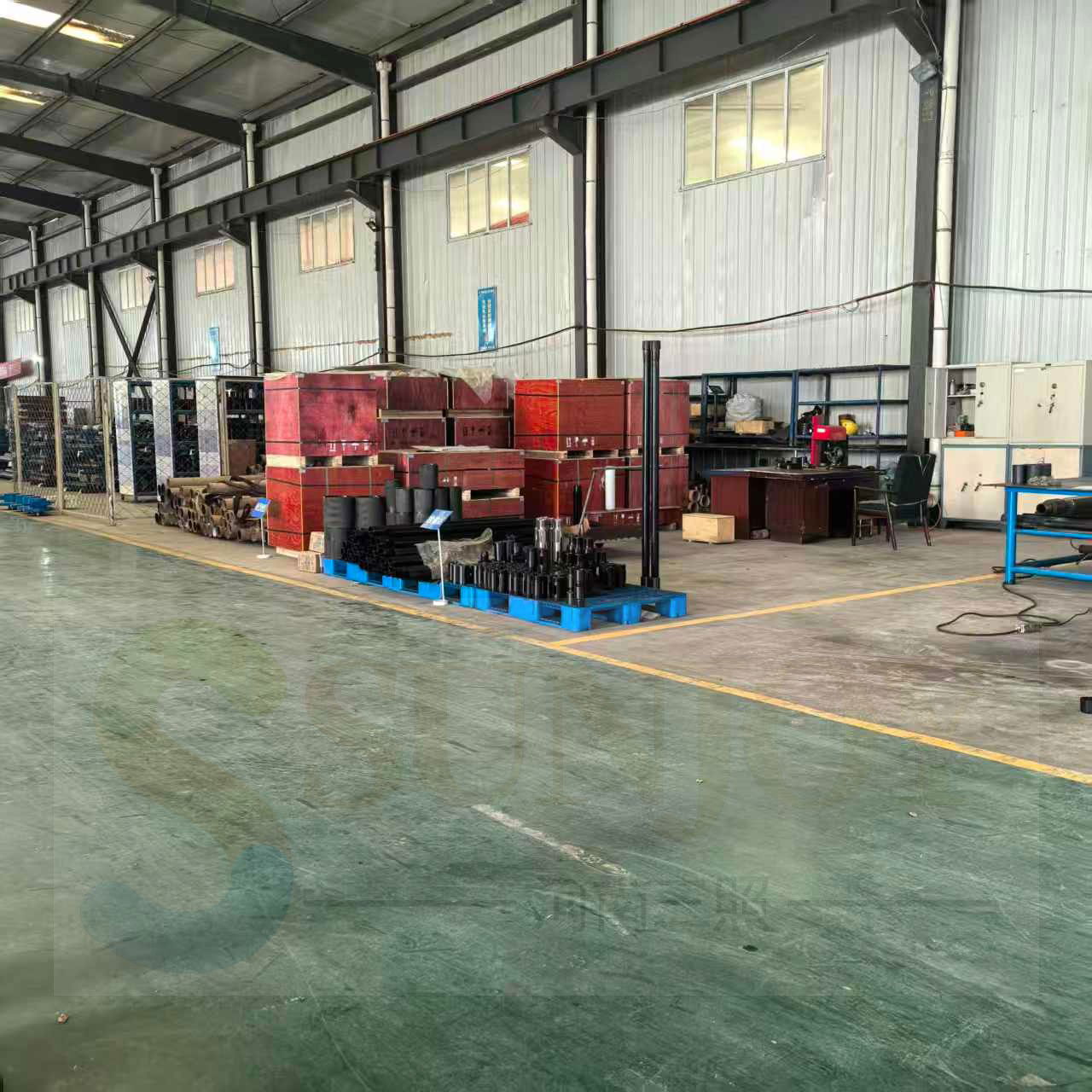

The factory of The cementing packer 6-5/8" 17-32lb/ft not less than 120°C
-------------------------
