OCTG Pipe Protectors Rubber or Plastic

Made of high-strength engineering plastic, featuring light weight, low cost and good elasticity, suitable for short-term protection under conventional working conditions.

$2.5
  • Brand: HNSZ
  • SKU: 3580
  • Shipping:
  • Return Policy: <div class="return-policy"> <h2>No-Risk Return Policy</h2> <p>Not 100% satisfied? We make returns easy.</p> <div class="highlight-box"> <h3>🔄 30-Day Returns</h3> <p>Return any item in original condition within 30 days for a full refund.</p> </div> <h3>📦 How to Return:</h3> <ol> <li><strong>Contact us</strong> at returns@yourstore.com with your order number</li> <li><strong>Get approval</strong> + return shipping label (if applicable)</li> <li><strong>Ship back</strong> via prepaid method</li> </ol> <h3>❗ Important Notes:</h3> <ul> <li>Refunds exclude original shipping fees</li> <li>Customs duties on international returns are non-refundable</li> <li>Final sale items marked "Non-returnable" are excluded</li> </ul> <p>🔔 <em>Need help? Chat live with our support team → [右下角聊天图标]</em></p> </div>
Add To Cart
Share


Learn More

Thread Protector

Production information

-------------------------------------------

1. Basic Definition and Function

Thread protectors for pipe fittings, also known as thread guards, are supporting protective devices fitted on the ends of seamless pipes. Their core function is to prevent the pipe-end threads from impact damage during handling, transportation and operation, so as to ensure the sealing performance and structural strength of subsequent connections. Relevant products must comply with industry standards such as API 5CT.

2. Protector Matching for Different Thread Types

  1. ‌EU (External Upset Tubing) Thread Protector‌
    Designed for 8 TPI, 1:16 taper 60° thread profile of external upset tubing. Most adopt steel-plastic structure (outer steel shell with inner plastic lining), fit the special outer diameter of the upset section, and feature stronger impact resistance.
  2. ‌NU (Non-Upset Tubing) Thread Protector‌
    Suitable for 10 TPI, 1:16 taper 60° thread profile of non-upset tubing, covering all NU specifications from 1.050" to 4.5". Both all-plastic and steel-plastic types are applicable with high universality.
  3. ‌BTC (Buttress Casing) Thread Protector‌
    Matches API standard buttress casing threads, fits all casing grades including J55 and P110. It can protect threads under working conditions with large axial tension, available in all-steel and steel-plastic structures, covering all BTC specifications from 2 3/8" to 20".
  4. ‌STC (Short Round Casing) Thread Protector‌
    Fits API short round casing threads with compact structure, mostly used for casing thread protection in conventional shallow well conditions. The all-plastic type has high cost performance and adapts to the thread size of standard short round connections.
  5. ‌LTC (Long Round Casing) Thread Protector‌
    Suitable for API long round casing threads. Compared with STC protectors, it has longer thread engagement length for more complete protection coverage, and adapts to the large-pitch structure of long round connections to avoid deformation of thread profile.

3. Premium Connection Thread Protector

Customized for non-API standard special threads. It needs to be processed to match the exclusive thread profile, taper and sealing surface size of corresponding premium connections. Most are made of high-strength modified plastic or customized steel-plastic composite structure, and some high-end models are equipped with magnetic or quick-release designs to meet the high-precision thread protection requirements under special well conditions.

4. Main Structural Classification

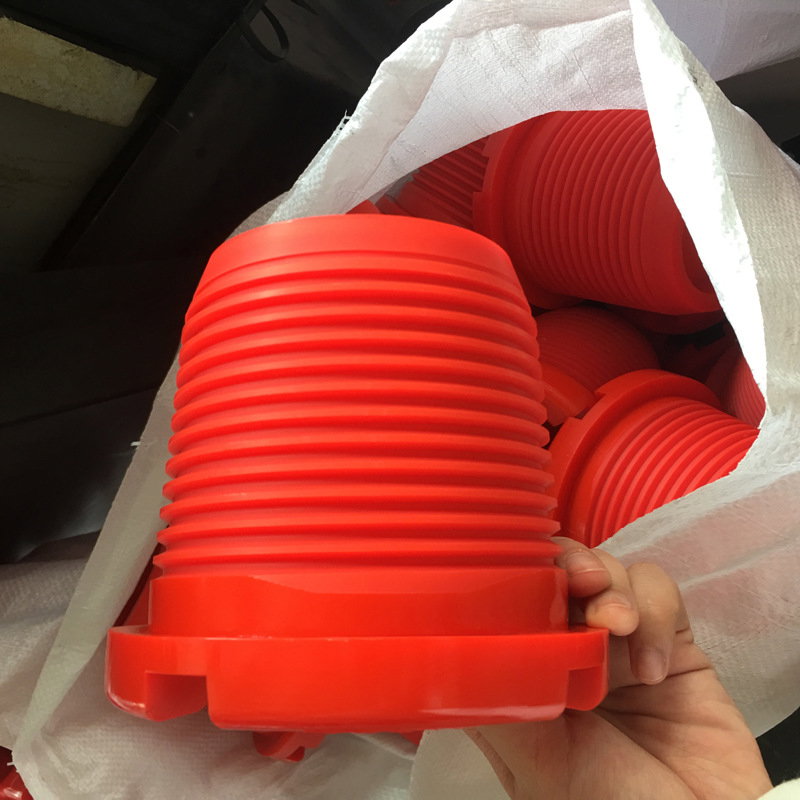

  • ‌All-plastic Type‌: Made of high-strength engineering plastic, featuring light weight, low cost and good elasticity, suitable for short-term protection under conventional working conditions.
  • ‌All-steel Type‌: Stamped from steel, with extremely high impact resistance, suitable for harsh scenarios such as field operation and long-distance transportation.
  • ‌Steel-plastic Composite Type‌: With outer steel shell and inner plastic lining, it balances impact resistance and thread matching accuracy, which is the most widely used type at present.
