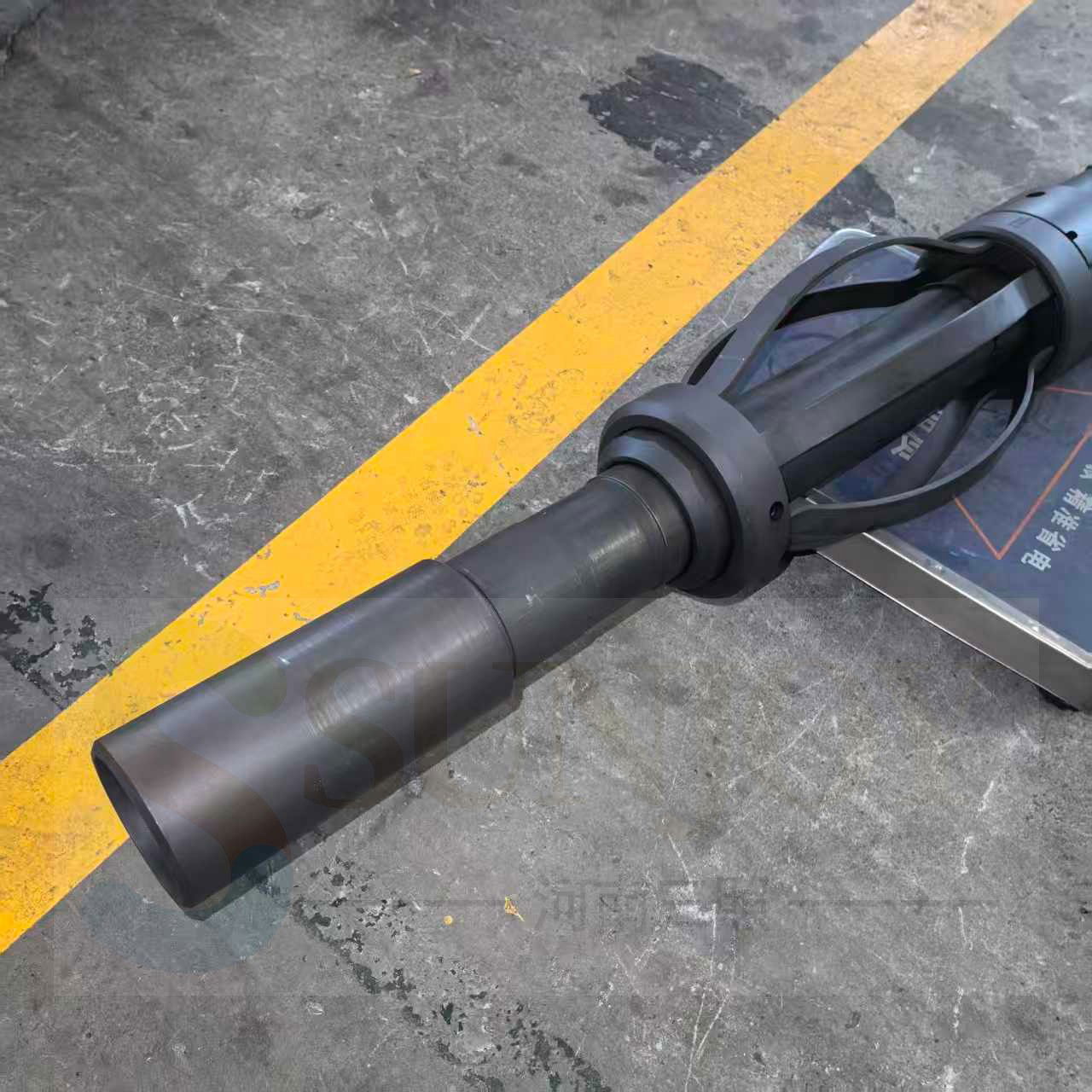

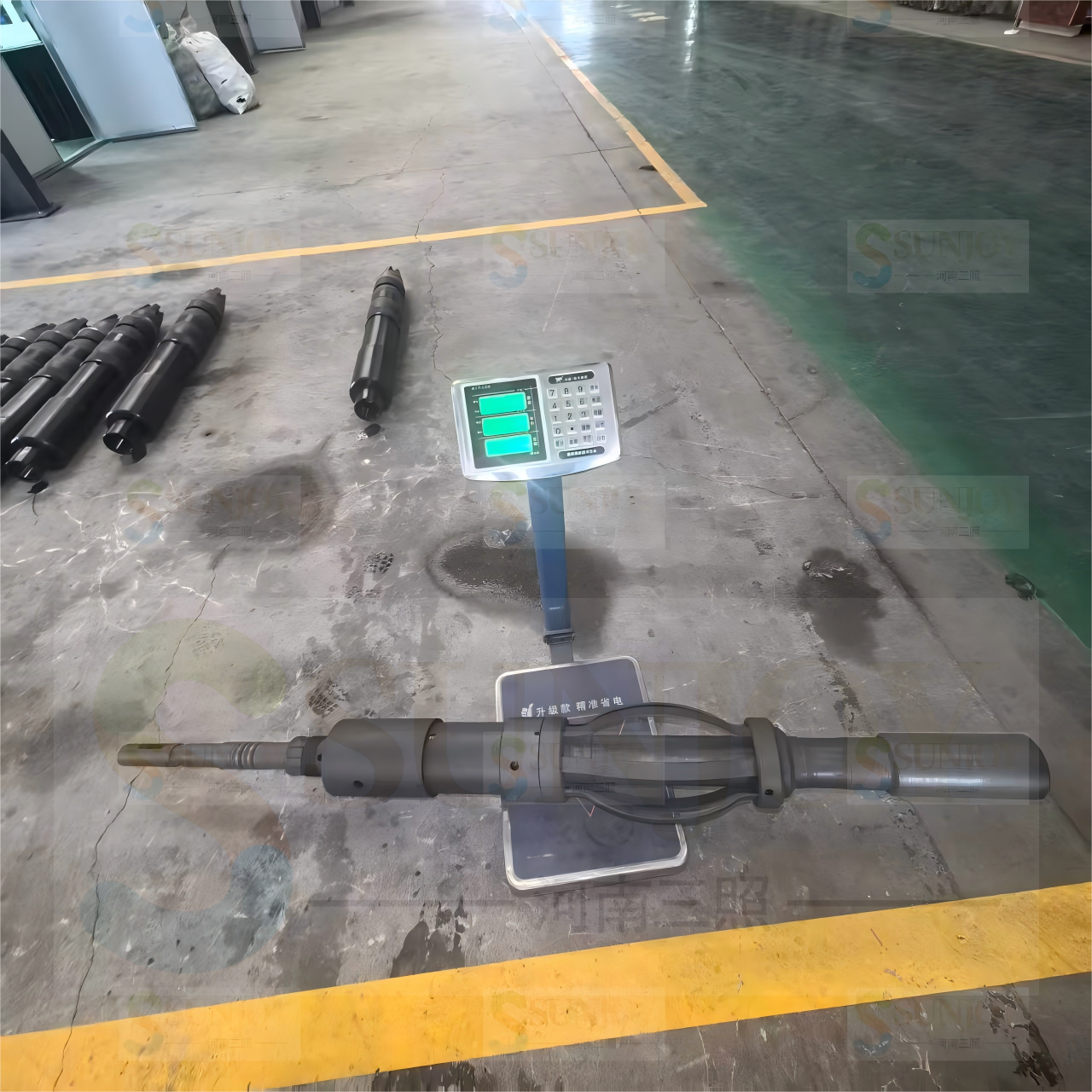

Mechanical Setting Tool 6-5/8" Upper connection: 2-7/8 in. EUE Box (tubing coupling 73 mm)
The Mechanical Setting Tool 6-5/8 is a high-precision instrument designed for professional and industrial applications. Built with durable materials, it ensures accuracy and reliability in mechanical processes. Ideal for various tasks requiring setting adjustments, this tool combines robust performance with ease of use.
- SKU: 5
- Shipping:
- Return Policy: <div class="return-policy"> <h2>No-Risk Return Policy</h2> <p>Not 100% satisfied? We make returns easy.</p> <div class="highlight-box"> <h3>🔄 30-Day Returns</h3> <p>Return any item in original condition within 30 days for a full refund.</p> </div> <h3>📦 How to Return:</h3> <ol> <li><strong>Contact us</strong> at returns@yourstore.com with your order number</li> <li><strong>Get approval</strong> + return shipping label (if applicable)</li> <li><strong>Ship back</strong> via prepaid method</li> </ol> <h3>❗ Important Notes:</h3> <ul> <li>Refunds exclude original shipping fees</li> <li>Customs duties on international returns are non-refundable</li> <li>Final sale items marked "Non-returnable" are excluded</li> </ul> <p>🔔 <em>Need help? Chat live with our support team → [右下角聊天图标]</em></p> </div>
Learn More
Mechanical Setting Tool 6-5/8“ Upper connection: 2-7/8 in. EUE Box (tubing coupling 73 mm)
Products Information
---------------------------
The mechanical setting tool is a device designed for setting cementing packers and drillable bridge plugs. Thanks to the built-in locking latch and sealing assembly, the tool is locked into the cementing packer when setting down weight, and it releases when pulled up or rotated to the right.
Features and Advantages:
Release by rotating to the right and simultaneously pulling up.
Built-in stinger for setting cementing packers.
Locking when setting down weight.
Setting by right-hand rotation.
Technical Specifications:
Nominal casing size: 168.3 mm (6 5/8 in.)
Casing weight range: 17–32 lb/ft
Minimum casing inner diameter: 142.8 mm (5.625 in.)
Maximum casing inner diameter: 154.8 mm (6.094 in.)
Gauge outer diameter: 136.5 mm (5.375 in.)
Outer diameter (across springs): 213.4 mm (8.401 in.)
Overall length: 1581.6 mm (62.27 in.)
Seal bore diameter: 2 in. (50.8 mm)
Stinger inner diameter: 1.25 in. (31.75 mm)
Flow area through stinger: 1.23 in²
Maximum pressure: 5000 psi (34.5 MPa)
Metal material: Steel 4130–4145
Elastomer: Nitrile, maximum operating temperature 250°F (120°C)
Upper connection: 2-7/8 in. EUE Box (tubing coupling 73 mm)
The mechanical setting tool shall be manufactured in compliance with the requirements of GOST ISO 14310-2014.
The tool shall be manufactured according to the drawing provided in Appendix No. 1 to this technical specification.

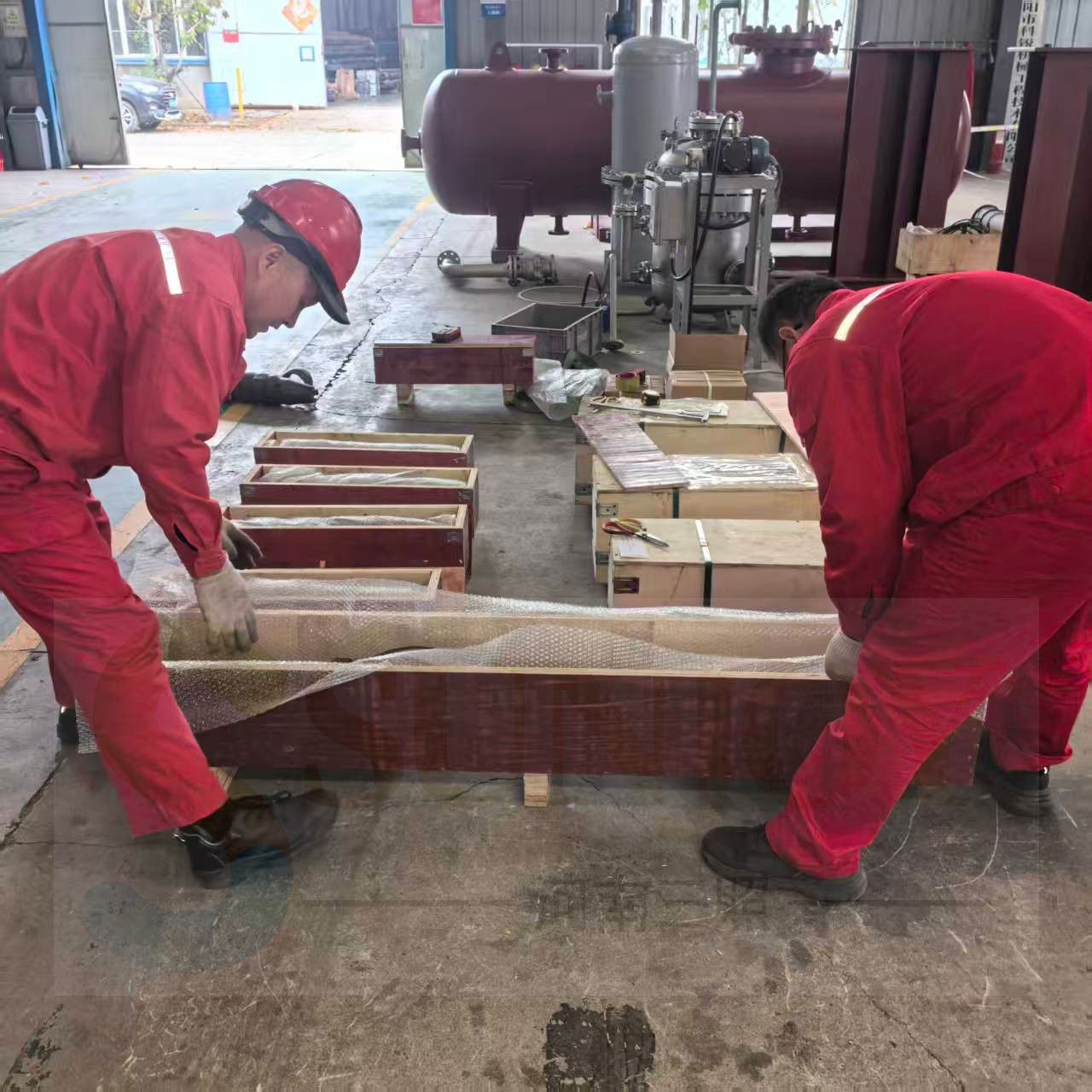

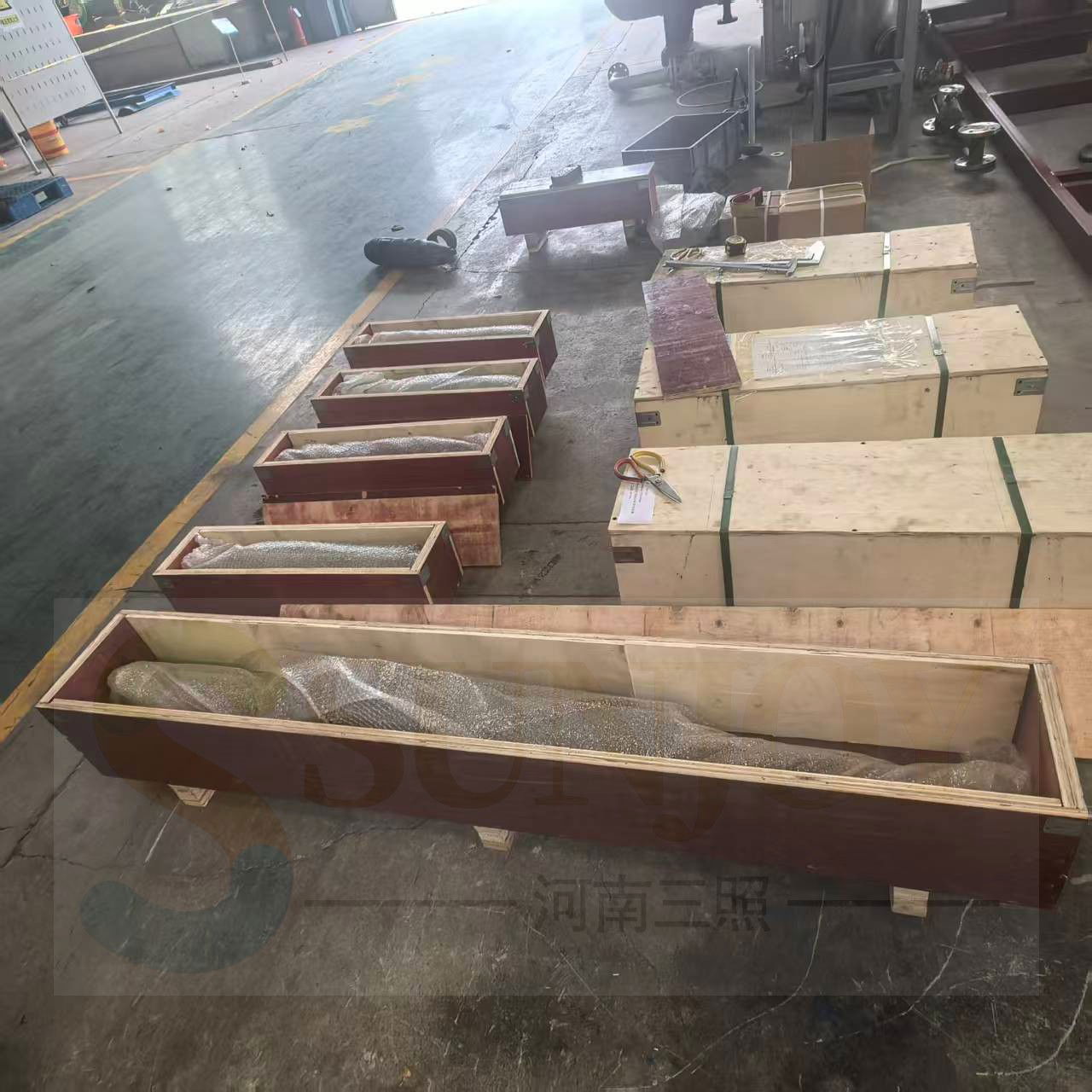

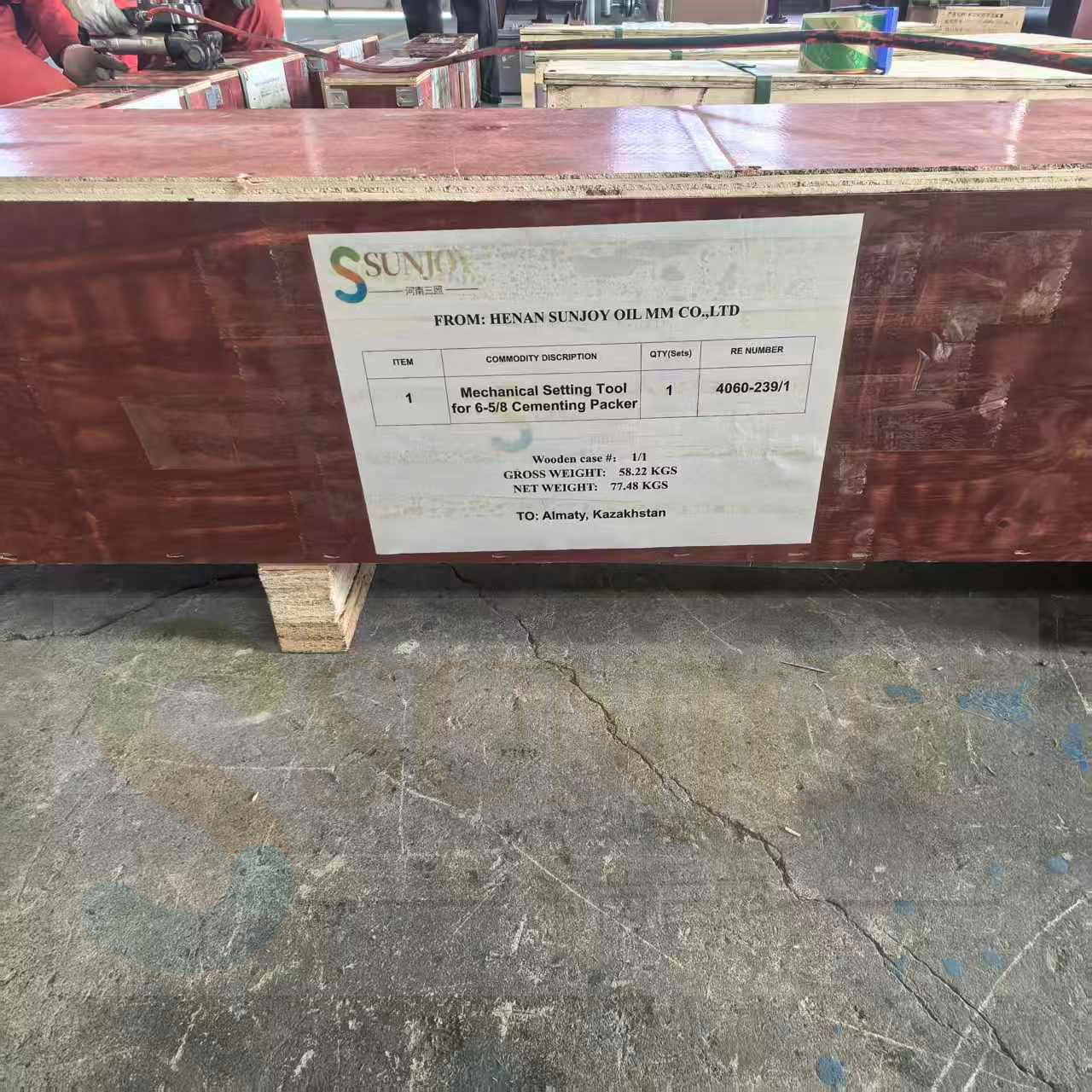

The Package of Mechanical Setting Tool 6-5/8" Upper connection: 2-7/8 in. EUE Box (tubing coupling 73 mm)
------------------------------

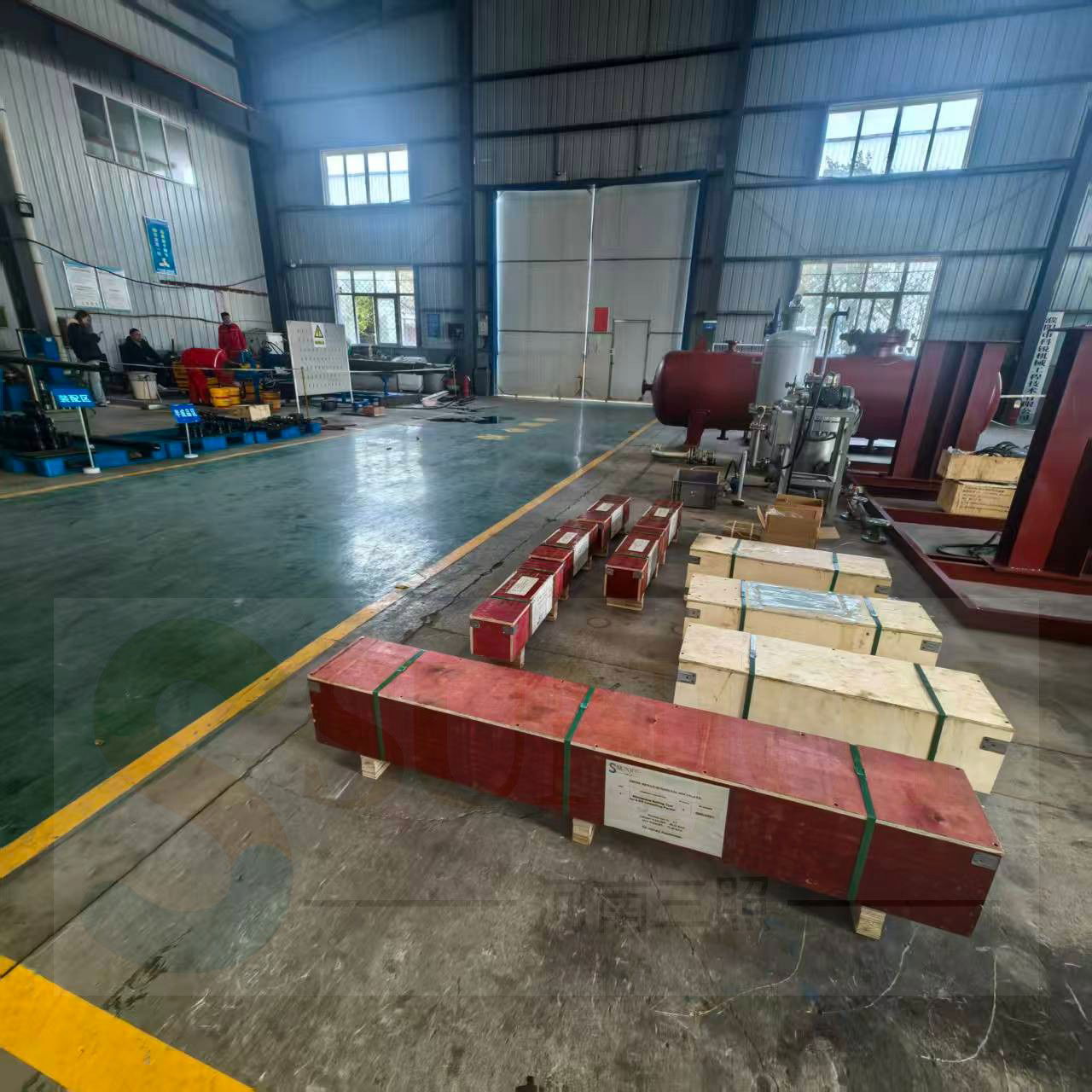

The factory of Mechanical Setting Tool 6-5/8" Upper connection: 2-7/8 in. EUE Box (tubing coupling 73 mm)
---------------------------------
