Intelligent Power Distribution Cabinet for Pumping Units
Intelligent power distribution cabinet for pumping unit (also commonly called intelligent control cabinet for pumping unit or energy-saving cabinet for pumping unit) is a special power control equipment developed for oilfield pumping units. It integrates functions of parameter collection, intelligent control, energy-saving optimization and safety protection, and is a core supporting facility for digital and energy-saving oilfield exploitation.
- Brand: HNSZ
- SKU: 200
- Shipping:
- Return Policy: <div class="return-policy"> <h2>No-Risk Return Policy</h2> <p>Not 100% satisfied? We make returns easy.</p> <div class="highlight-box"> <h3>🔄 30-Day Returns</h3> <p>Return any item in original condition within 30 days for a full refund.</p> </div> <h3>📦 How to Return:</h3> <ol> <li><strong>Contact us</strong> at returns@yourstore.com with your order number</li> <li><strong>Get approval</strong> + return shipping label (if applicable)</li> <li><strong>Ship back</strong> via prepaid method</li> </ol> <h3>❗ Important Notes:</h3> <ul> <li>Refunds exclude original shipping fees</li> <li>Customs duties on international returns are non-refundable</li> <li>Final sale items marked "Non-returnable" are excluded</li> </ul> <p>🔔 <em>Need help? Chat live with our support team → [右下角聊天图标]</em></p> </div>
Learn More

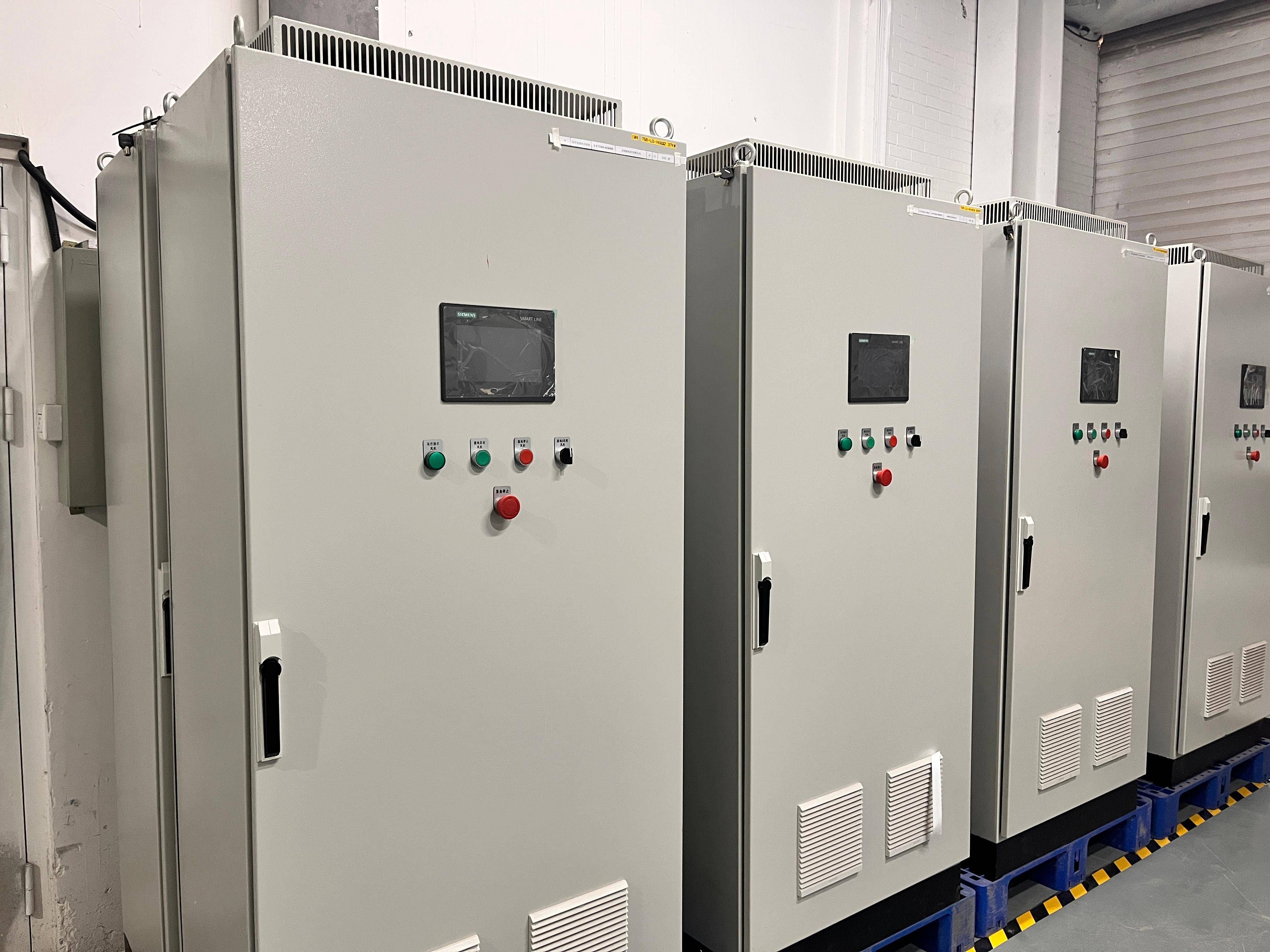

Intelligent power distribution cabinet for pumping unit
Intelligent power distribution cabinet for pumping unit (also commonly called intelligent control cabinet for pumping unit or energy-saving cabinet for pumping unit) is a special power control equipment developed for oilfield pumping units. It integrates functions of parameter collection, intelligent control, energy-saving optimization and safety protection, and is a core supporting facility for digital and energy-saving oilfield exploitation.
Compared with traditional pumping unit electric control cabinets, its core advantage is upgrading from single power distribution to full-process intelligent management and control:
It can automatically collect oil well working condition data such as oil pressure, casing pressure, indicator diagram and three-phase electrical parameters, support remote transmission, and realize unattended monitoring of oil wells.
According to the actual fluid supply capacity of the oil well, it can intelligently adjust the stroke and frequency of the pumping unit through frequency conversion technology, and supports intelligent intermittent pumping mode, which solves the problems of "large horse pulling small cart" and high idle energy consumption of traditional equipment. The comprehensive energy saving rate can generally reach 15%-30%.

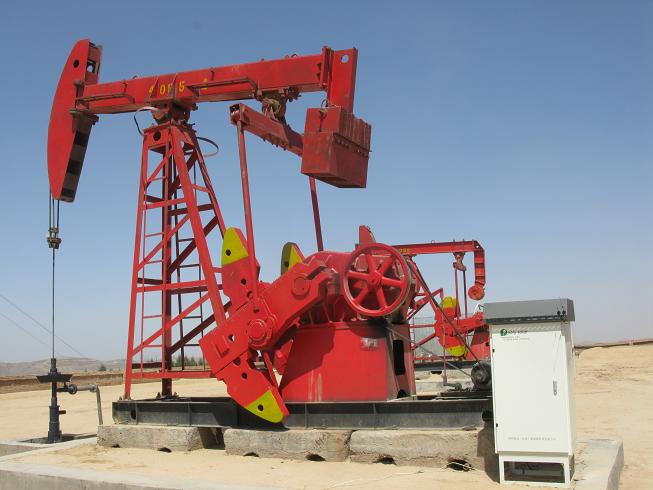

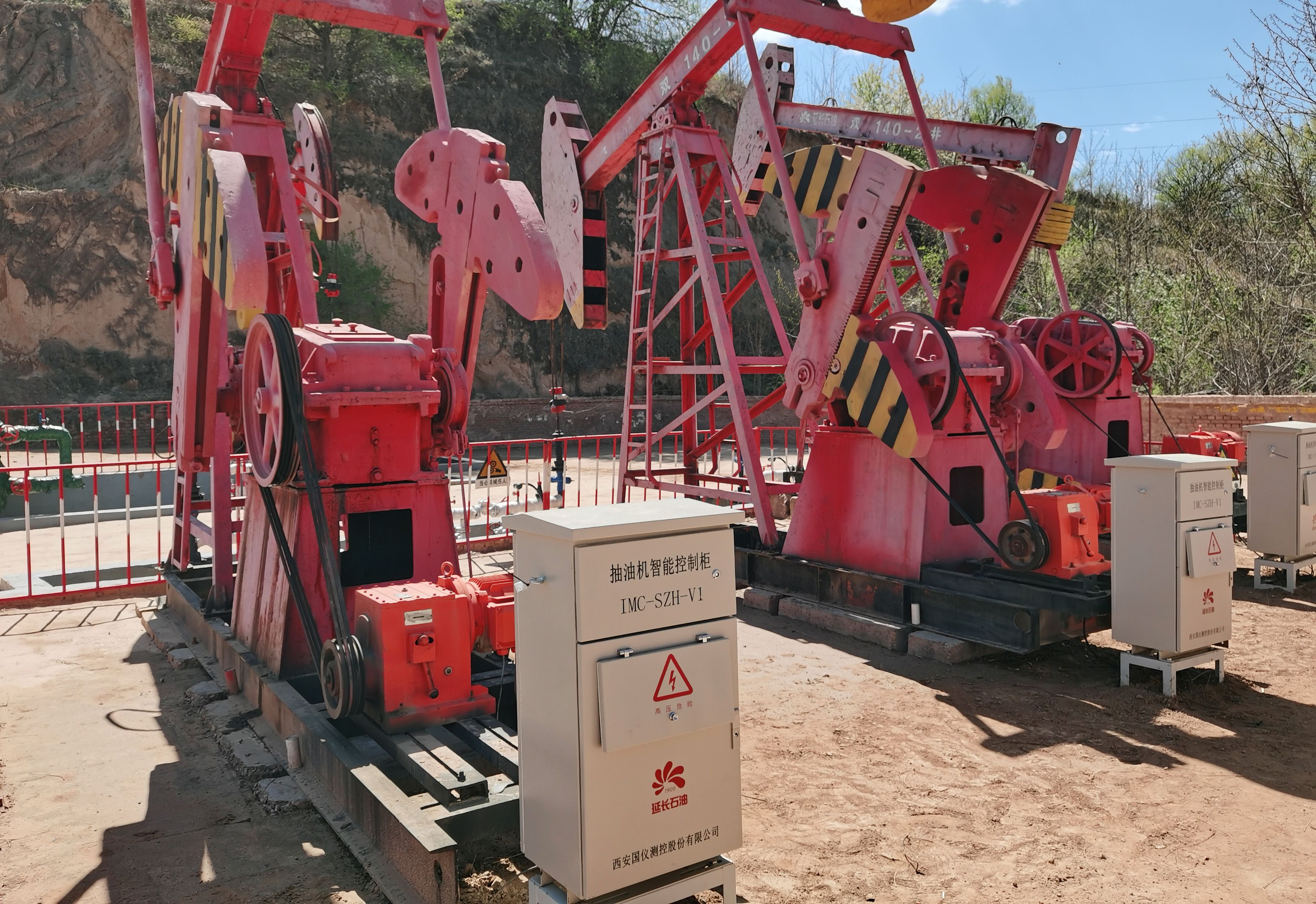

It adapts to the harsh outdoor environment of oil fields, and has multiple fault alarms and protections such as overvoltage, undervoltage, phase loss, and sucker rod breakage. When the network is disconnected, it can store data and operate independently locally, and automatically resume data transmission after the network recovers, with much higher reliability than traditional cabinets.
It can be used not only for the supporting construction of new oil wells, but also supports the digital transformation of old oil wells. It is currently the standard configuration for oilfields to reduce mining energy consumption and realize digital management.
Specifications and Description of Intelligent Power Distribution Cabinets for Pumping Units
There is no unified mandatory standard for the specifications of intelligent power distribution cabinets for pumping units in public information. Different manufacturers design products differently according to the adapted power and functional requirements. The following are the specification information and descriptions of mainstream products:
