Double-Rubber Packer 6-5/8
The Double-Rubber Packer 6-5/8 offers superior reliability for piping systems, providing a secure seal and durable construction for varied industrial applications.
- Brand: Sunjoy
- SKU: 5
- Shipping:
- Return Policy: <div class="return-policy"> <h2>No-Risk Return Policy</h2> <p>Not 100% satisfied? We make returns easy.</p> <div class="highlight-box"> <h3>🔄 30-Day Returns</h3> <p>Return any item in original condition within 30 days for a full refund.</p> </div> <h3>📦 How to Return:</h3> <ol> <li><strong>Contact us</strong> at returns@yourstore.com with your order number</li> <li><strong>Get approval</strong> + return shipping label (if applicable)</li> <li><strong>Ship back</strong> via prepaid method</li> </ol> <h3>❗ Important Notes:</h3> <ul> <li>Refunds exclude original shipping fees</li> <li>Customs duties on international returns are non-refundable</li> <li>Final sale items marked "Non-returnable" are excluded</li> </ul> <p>🔔 <em>Need help? Chat live with our support team → [右下角聊天图标]</em></p> </div>
Learn More
Double-Rubber Packer 6-5/8
Technical Data:
Casing string diameter – 6-5/8" (#24-28 thread type)
Tubing diameter – 2-7/8"
Connection thread – 2-7/8" EUE 8rd (female x male)
Maximum diameter of metal sleeve for sealing ring – 143 mm
Sealing ring diameter – 152 mm
Working differential pressure – 20–30 MPa
Packer inner diameter – not less than 63 mm
Distance between the bottoms of upper and lower sealing rings – 230 mm
Distance from the bottom of the upper sealing ring to the top of the lower sealing ring’s metal sleeve – 90 mm
Total length of packer – not more than 800 mm
Sealing Ring (Cup) Specifications:
Number of sealing rings on the packer – 2
Sealing ring height – 130 mm
Outer diameter – 152 mm
Inner diameter – 89 mm
Type of sealing ring – Standard single-lip nitrile rubber sealing ring. Molded from specially formulated high-strength, wear-resistant rubber and reinforced with steel wire.
Maximum operating temperature – not lower than 120°C.
Other:
Detachable structure for easy replacement of worn sealing rings.

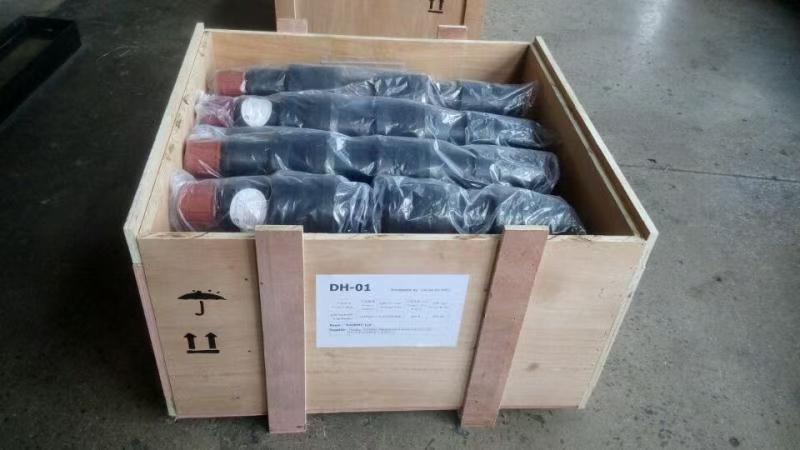

Pachage of the Double-Rubber Packer 6-5/8
