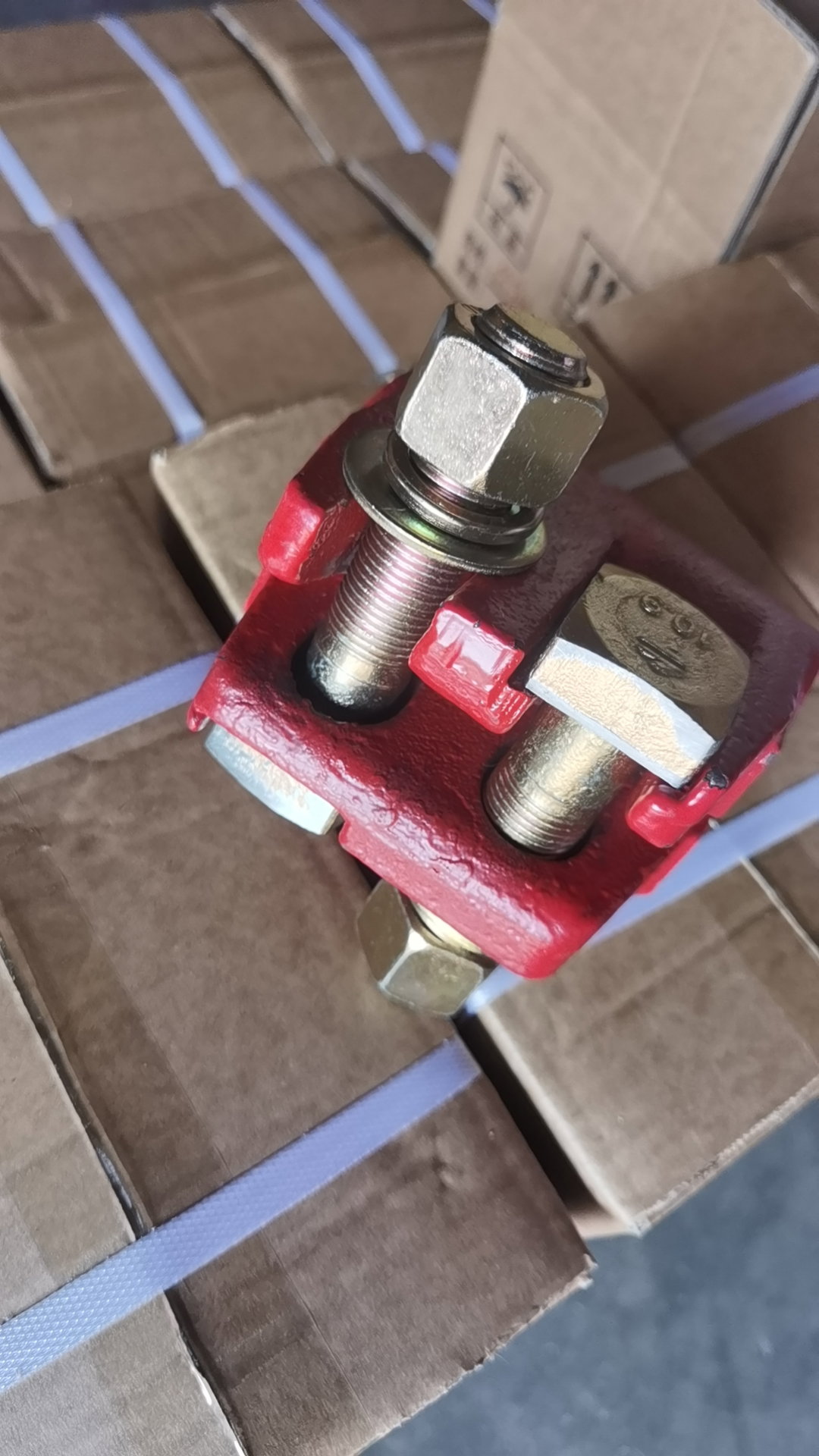

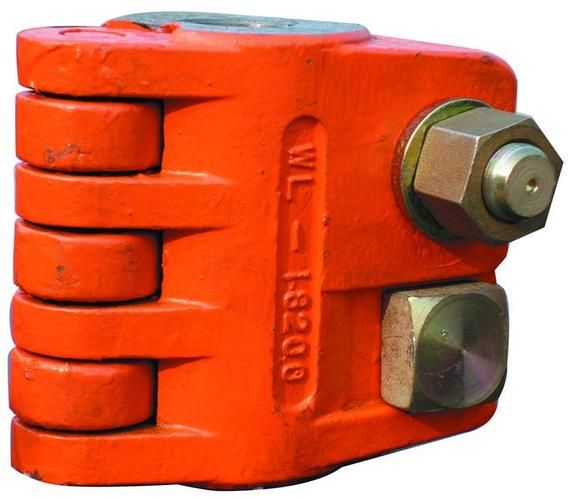

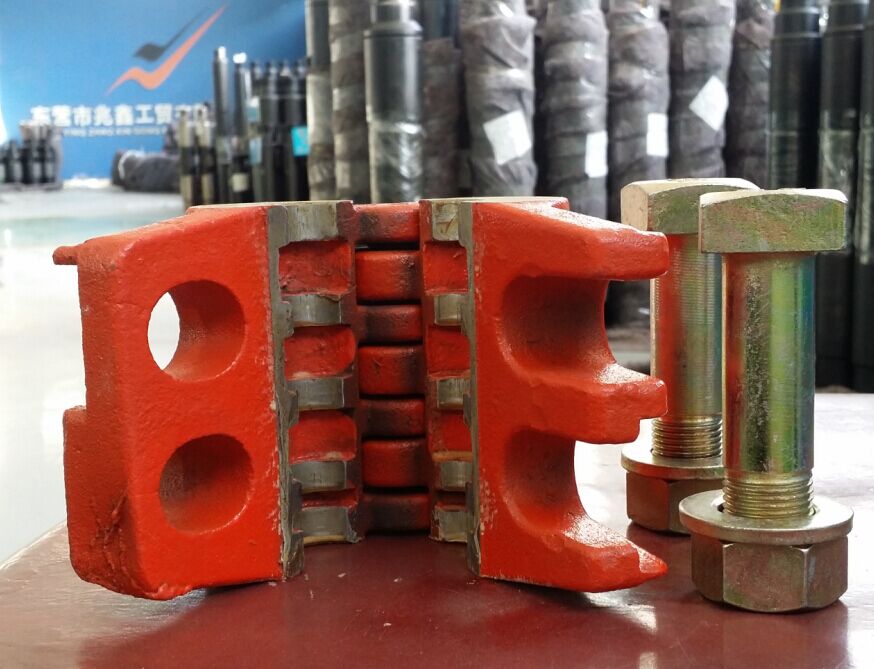

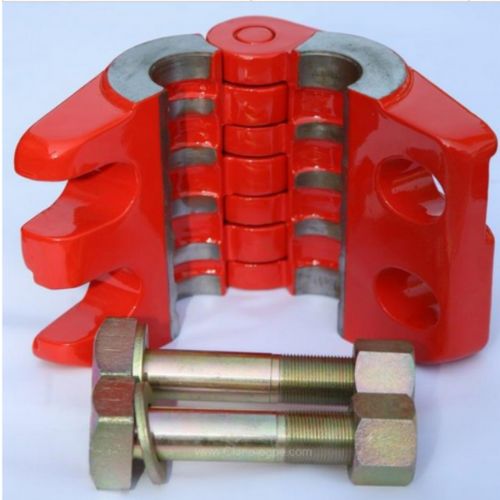

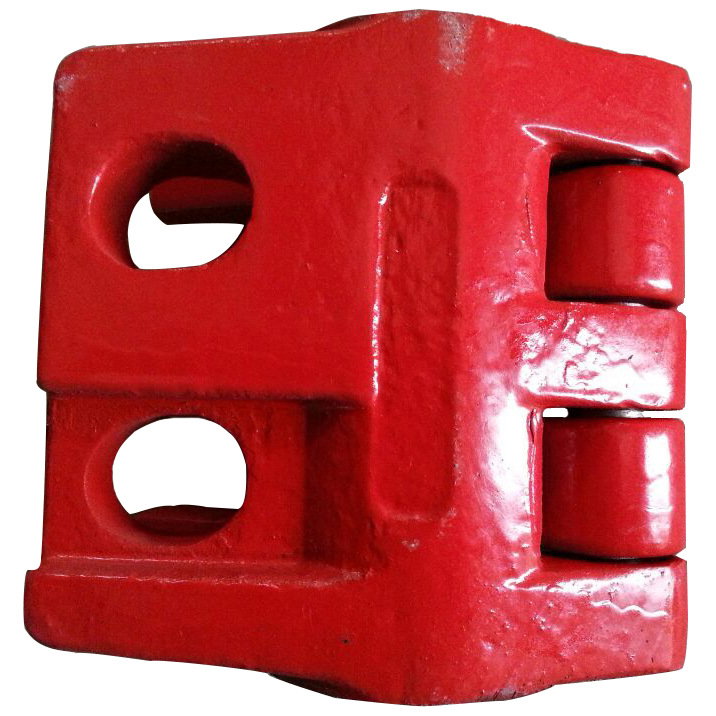

1-1/4" Double Stud Polish Rod Clamp
The 1-1/4 inch double stud polish rod clamp is a special matching component dedicated to fixing and positioning polish rods in oil production well workover operations, which can also be used as a temporary polish rod supporting tool.
- Brand: HNSZ
- SKU: 245
- Shipping:
- Return Policy: <div class="return-policy"> <h2>No-Risk Return Policy</h2> <p>Not 100% satisfied? We make returns easy.</p> <div class="highlight-box"> <h3>🔄 30-Day Returns</h3> <p>Return any item in original condition within 30 days for a full refund.</p> </div> <h3>📦 How to Return:</h3> <ol> <li><strong>Contact us</strong> at returns@yourstore.com with your order number</li> <li><strong>Get approval</strong> + return shipping label (if applicable)</li> <li><strong>Ship back</strong> via prepaid method</li> </ol> <h3>❗ Important Notes:</h3> <ul> <li>Refunds exclude original shipping fees</li> <li>Customs duties on international returns are non-refundable</li> <li>Final sale items marked "Non-returnable" are excluded</li> </ul> <p>🔔 <em>Need help? Chat live with our support team → [右下角聊天图标]</em></p> </div>
Learn More
Product Description
-----------------------------------------
The 1-1/4 inch double stud polish rod clamp is a special matching component dedicated to fixing and positioning polish rods in oil production well workover operations, which can also be used as a temporary polish rod supporting tool. It can bear the polished rod load during the operations of polish rod replacement and fishing workover, prevent the accidental falling of the polish rod, and guarantee on-site operation safety.
This product adopts double-stud opposed clamping design, which provides more uniform clamping force and stronger structural stability compared with single-stud clamps. It is processed by integral forging technology, the main body is forged from high-strength carbon steel, and the clamping tooth surface is quenched and hardened, so it clamps tightly without slipping and will not excessively damage the surface of the polish rod. The whole product is treated with anti-rust hot-dip galvanizing, which can adapt to the outdoor open-air, underground humid and corrosive working environment of oil fields. Its wear resistance and corrosion resistance are excellent, and the service life is more than 30% higher than that of ordinary cast clamps. The product supports customization of special parameter specifications according to drawings, with sufficient conventional inventory. It will be shipped within 3 working days after payment, supports domestic distribution, and is conventionally packed in wooden cases for protection.
The product is widely applicable to production and workover operations of onshore oilfields and offshore oil production platforms, and can also be adapted to other pipeline fixing operation scenarios to meet the fixing and load-bearing requirements under different working conditions.
Detailed Technical Specifications
----------------------------------------------------------------------------
1. Basic Dimension Parameters
| Parameter Item | Parameter Value |
| --- | --- |
| Adapted polish rod specification | 1-1/4" (nominal diameter 31.75mm) |
| Stud specification | M16 double polish rod stud |
| Center distance of studs | 65mm |
| Inner hole diameter of slip | 32mm |
| Outer diameter of clamp body | 90mm |
| Overall length | 112mm |
| Net weight of product | Approx. 4.8kg |
| Thread standard | Conforms to GB/T 196-2003 General Purpose Thread Tolerance Standard |
2. Performance Parameters
--------------------------------------------------
| Parameter Item | Parameter Value |
| --- | --- |
| Rated bearing load | ≤120kN |
| Working hardness (clamp body) | 210~260HB |
| Tooth surface hardness | HRC 55~60 |
| Working temperature range | -30℃~120℃ |
| Depth of polish rod clamping indentation | ≤0.1mm (conforms to SY/T 5029-2010 standard) |
| Anti-rust grade | Hot-dip galvanized, no rust after salt spray test ≥48 hours |
3. Material Parameters
---------------------------------------------
| Component | Material Option |
| --- | --- |
| Slip body | 45# high-quality carbon structural steel, 35CrMo alloy steel for customization |
| Double stud | 40Cr alloy steel quenched and tempered |
| Lock nut | 45# carbon steel galvanized |
