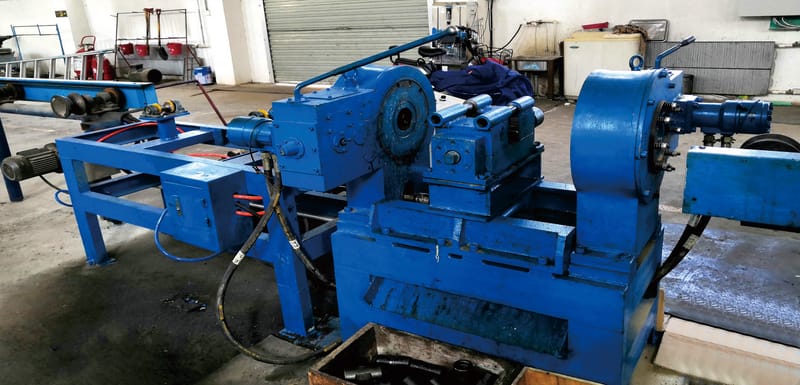

XYNJ200/20 Hydraulic Buckling Machine

A heavy-duty solution designed for precision pipe bending and deformation testing in petroleum, OCTG, and pipeline operations. This robust machine delivers controlled buckling force for quality validation and material testing.

Key Features:
✔ 200-ton Capacity - Handles pipes up to 20" diameter (adjustable per model)
✔ Hydraulic Precision - Programmable pressure control (±1% accuracy)
✔ Multi-Function - Buckling, bend testing, and ovality verification
✔ Safety Focus - Overload protection + emergency stop system

Technical Specifications:

  • Max Force: 2000kN (XYNJ200 model)

  • Stroke: 20mm (customizable)

  • Power: 15kW hydraulic system

  • Compliance: API 5CT/ISO 3183 standards

Typical Applications:
• Casing/tubing collapse resistance tests
• Pipeline integrity validation
• Drill pipe material R&D
• Pre-installation quality checks

Advantages vs Competitors:

  • Dual-plane buckling detection

  • Real-time data logging (pressure/displacement)

  • Low-maintenance hardened dies

Ideal for:

  • OCTG manufacturers

  • Pipeline inspection companies

  • Oilfield service providers
