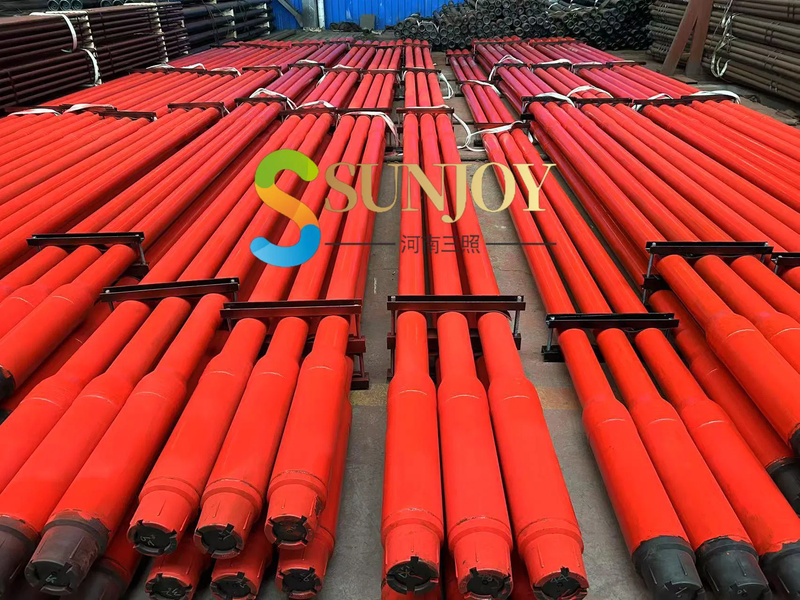

Heavy-Weight Drill Pipe (HWDP)

1. Definition & Purpose

Heavy-Weight Drill Pipe (HWDP) is a specialized drill string component designed to provide transitional weight between standard drill pipes and drill collars. It reduces stress concentrations in the drill string, improves weight transfer to the bit, and minimizes differential sticking risks in deviated or horizontal wells.

2. Key Features & Advantages

FeatureBenefit
Thicker Wall DesignHigher linear weight (30–50% heavier than standard DP) for improved WOB (Weight on Bit).
Intermediate StiffnessBalances flexibility (vs. rigid drill collars) and reduces fatigue failure risks.
Centralized Tool JointsMinimizes differential sticking in high-angle wells.
Wear-Resistant MaterialExtended service life in abrasive formations.

3. API Specifications & Grades

  • Standard: API 5DP (with HWDP-specific requirements).

  • Common Grades:

    • E-75: Standard applications.

    • X-95/G-105: High-torque, deep wells.

    • S-135: Ultra-deep or ERD (Extended Reach Drilling).

  • Dimensions: Typically 3½" to 6⅝" OD, with 4–6x higher weight-per-foot vs. standard DP.
