Bucking units

1．General overview:

The master and backup tongs of this bucking unit are of cylinder clamping structure, and the

master tong rotate 360 degrees continuously, the diameter of clamping pipe can be continuously

changed, clamping different pipe diameters without changing the tong head, improving

production efficiency and safety, reducing labor intensity, and have been widely used in the

connection of petroleum tools

2.The torque controller can set the make-up torque, automatically control (torque overload

protection), and automatically generate turns - torque, time - torque, speed - turns. The torque

query database can be set to input material, pound grade, specification connection type, maximum

torque, minimum torque and optimal torque. The hydraulic control device is equipped with air

cooling device, Equipped with oil cooler ，Electrical air conditioning ，There is an emergency stop

device on the control panel;

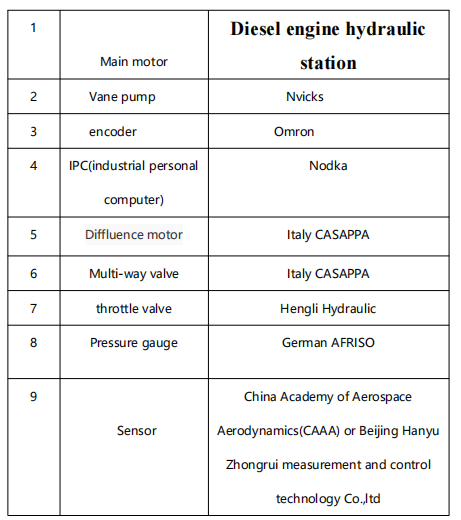

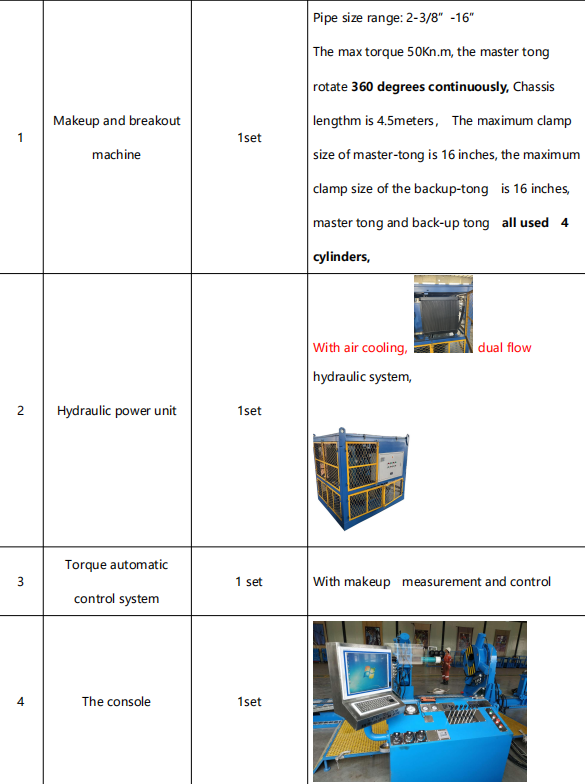

3.Technical parameters

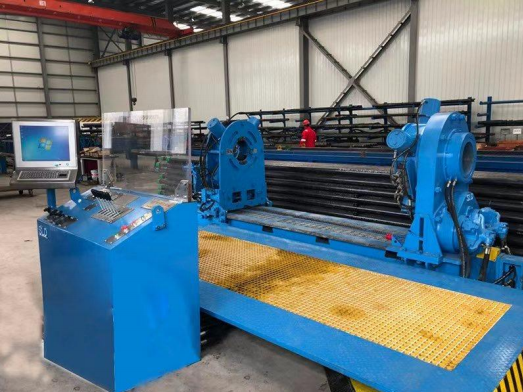

3.1 SLD16-70 Bucking Unit main engine

3.1.1 pipe size range: 2-7/8 "～16"

3.1.2 Max torque: 70Kn.m

3.1.3 rotary speed range: 0-6 r/min；

3.1.4 Maximum supply pressure: 18MPa

3.1.5 Chassis length 4.5m

3.1.6 weight: 17500kgs

3.2 hydraulic power unit (air cooling)

3.2.1 Max working pressure:20MPa

5/63.2.2 Nominal displacement:180 L/min

3.2.3 Tank volume:600L

3.2.4 Oil pump motor power 37KW

3.2.5 Rated operating oil temperature: <65℃

3.2.6 Dimension: 2000×1510×1800mm

3.2.7weight: 2000kgs

3.3 Torque automatic control system

3.3.1 Supply voltage: 380AC

3.3.2 working voltage：220V

3.3.3 Power consumption: 500W Max

3.3.4 Torque meter range： 0-80kN.m

3.3.5 Control range: can be set

3.3.6 Detection accuracy: ≤±2％,

3.3.7 unloading and effusion: 80L/min

3.3.8 Unloading response: 20ms

3.3.9 Environment temperature: -20℃ to +65℃

3.3.10 Environment humidity: 10% to 80% R·H (No condensation)

3.3.11 Volume: L 600mm*W 500mm*H 300mm

3.3.12 weight: 80KGS

3.4. Console

3.4.1 Dimension (LxWxH): 1700×1000×1300mm

3.4.2 weight: 200KGS
