This 2-3/8" EUE L80 -1 Pin x Pin tubing pup joint is primarily used as a spacing or adjustment tool within a tubing string in oil and gas wells. Detailed Applications: Length Adjustment: To fine-tune the overall length of the tubing string. This ensures that the tubing hanger lands correctly at the wellhead and that downhole equipment (like packers or pumps) is set at precisely the desired depth. Connection Matching: To provide a transition between two tubing joints that have the same type of connection (both Pin threads in this case) but might be difficult to connect directly due to their position in the string. Wear Protection: To be placed at critical points in the string that are prone to excessive wear (e.g., across perforations or in deviated sections of the wellbore). The pup joint, being a cheaper component than a full-length tubing joint, can be replaced more economically when worn out. Specialty Service: In some cases, it can be used to isolate a specific section of tubing for testing or to slightly alter the hydraulic flow characteristics at a specific point.


$29 $30-3.33%
  • UGS: 300
  • Livraison:
  • Politique de Retour: <div class="return-policy"><h2>Politique de retour sans risque</h2><p> Pas entièrement satisfait ? Retours faciles.</p><div class="highlight-box"><h3>

En savoir plus


2-3/8" EUE L80 -1 TUBING PUP JOINT 6FT PIN X PIN


Introduction

------------------------------------------------

Products name: 3-1/2 EUE PUP JOINT 4FT WALL THICKNESS0.254 WITH COUPLING

Type: 3-1/2" (1.9" to 4-1/2 ")

Thread: EUE( NUE)

Length: 1ft to 12ft or as you need

Keyword: API External-upset tubing pup joint, API Non-upset tubing pup joint

Surface treatment: Painting, phosphating

Label1

Weight

PPF

OD

Nominal Linear Mass threaded and coupled

UPSET

OD MM

Length from end of pipe to start of taper mm

Length from end of pipe to end of taper  mm

Length from end of pipe to start of pipe body

2-3/8

4.70

60.32

6.99

78.59

101.60

125.40

254.00

5.95

60.32

8.85

78.59

101.60

152.40

254.00



Shipment

--------------------

By Sea

By Air

By Truck

or as you need


Payment term

------------------------


1. 45% pre-payment and the balance when goods are ready

2. 40% pre-payment and the balance when goods are ready

3. 30% pre-payment and the balance when goods are ready

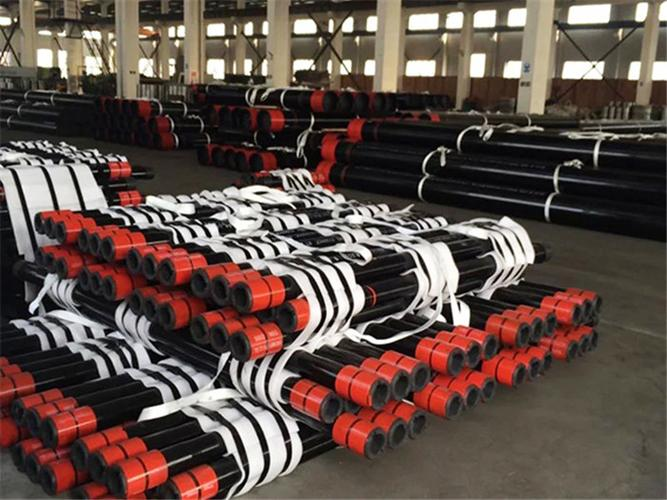

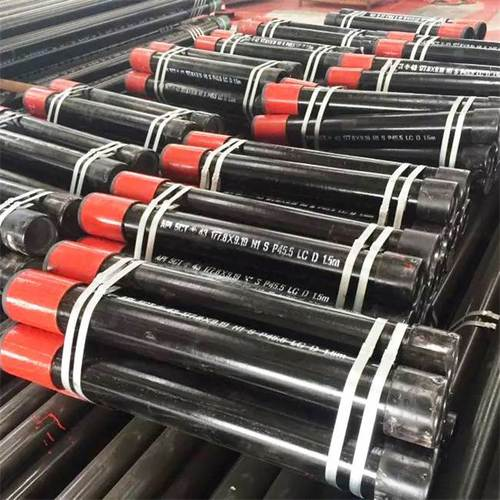

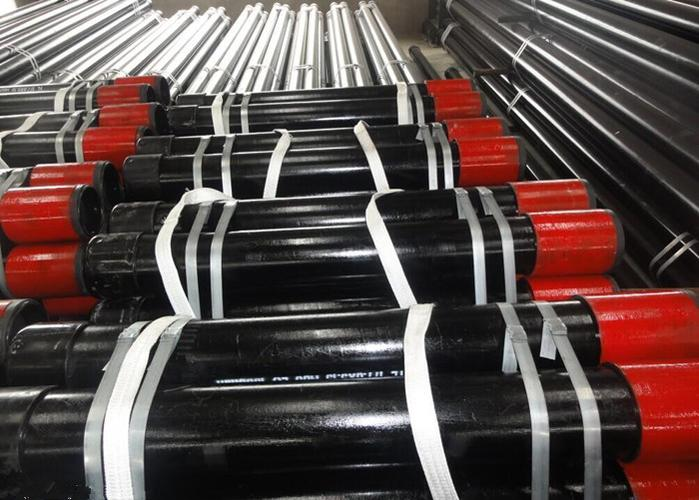

Workshop pictures

------------------------------
