Acoplamiento de varilla de succión de 22 pulgadas

22in sucker rod coupling API 11AX

Description:

Products name: 22in sucker rod coupling API 11AX

Sucker rod coupling parameters

The parameters of rod coupling include material, standard, specification, size, weight and so on. The following is the specific parameter information: 1

Material: 40Cr

Standard: API Spec 11B

Specifications:

O.D. (OD) : 1-1/2" (38.10mm)

I.D. (ID) : 15/16" (23.81mm)

Length: 4" (101.6mm)

Weight: 0 56kg

Other sizes: 3/4"; 7/8 "; 1 "; 1-1/8"

Features: Yunsheng common rod coupling and spray welding rod coupling are produced in accordance with APISpec 11B standards.

Specification

19mm sucker rod: collar outer diameter is 48.3mm, inner diameter is 40.35mm, thickened outer diameter is 53.2mm, inner diameter is 40.35mm.

22 mm rod: collar diameter is 60.3 mm, inner diameter is 50.35 mm, thickening outside diameter is 65.9 mm, inner diameter is 50.37 mm.

25 mm rod: collar diameter is 73.0 mm, inner diameter of 62.0 mm, thickening outside diameter is 78.6 mm, inner diameter is 62.0 mm. :

27/8 sucker rod coupling outer diameter of 88.9 mm, inner diameter of 75.9 mm, thickening outside diameter is 95.25 mm, inner diameter is 75.9 mm.

114.3 mm rod: collar diameter is 114.3 mm, inner diameter of 100.3 mm, thickening outside diameter is 120.65 mm, inner diameter is 100.3 mm.

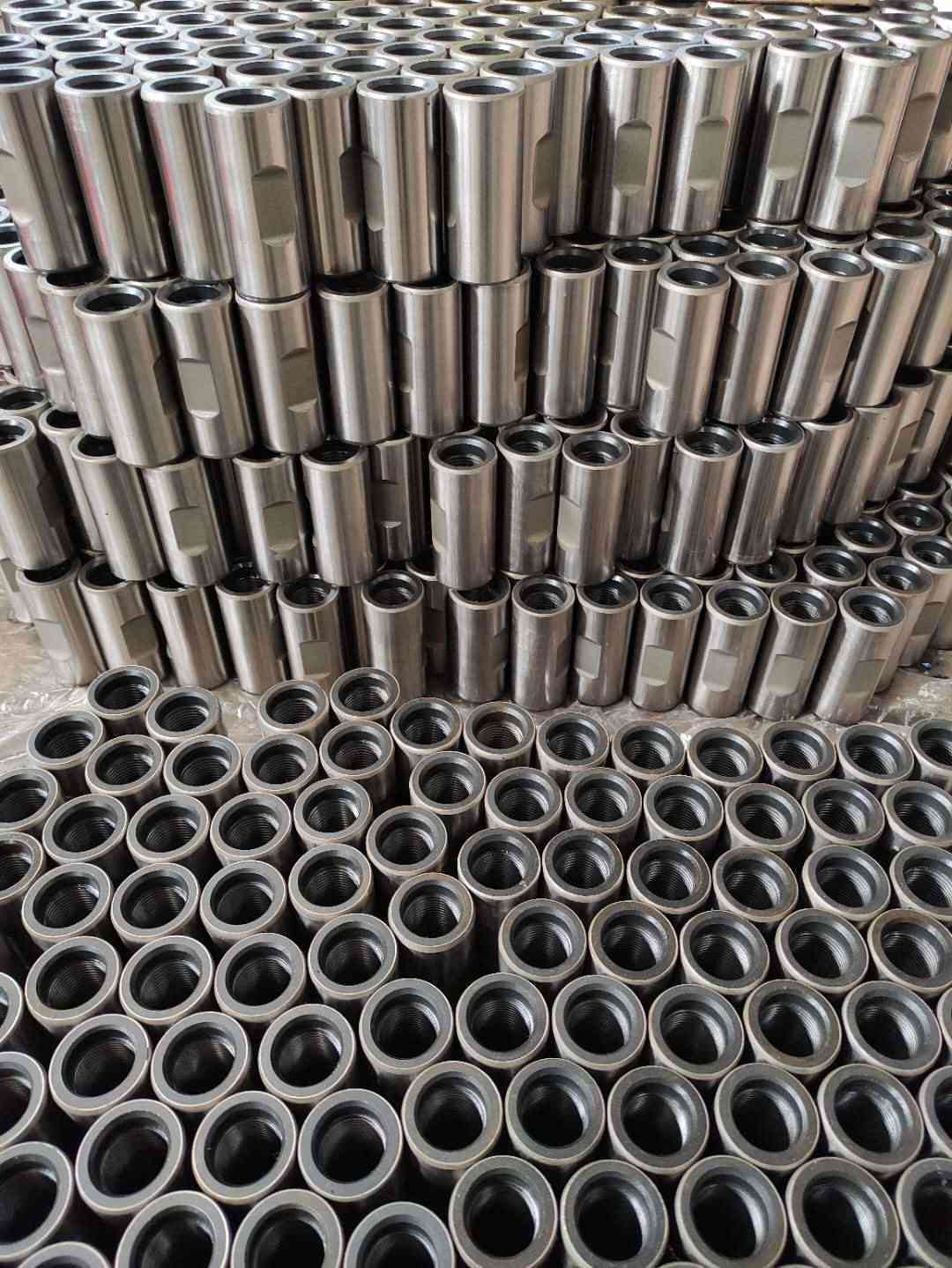

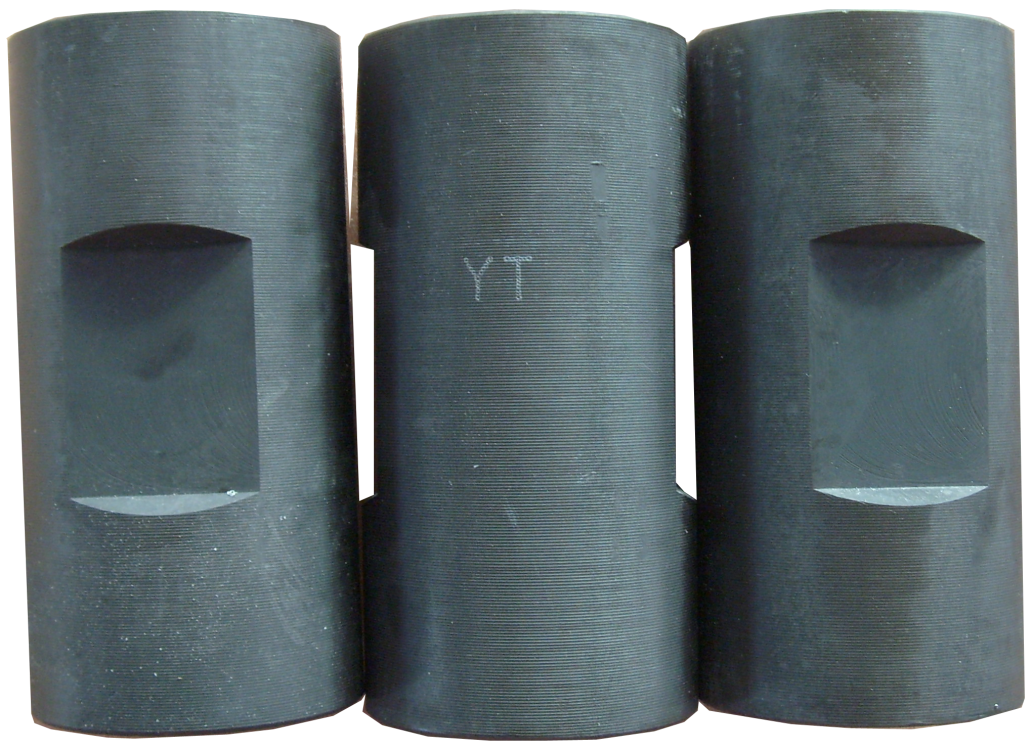

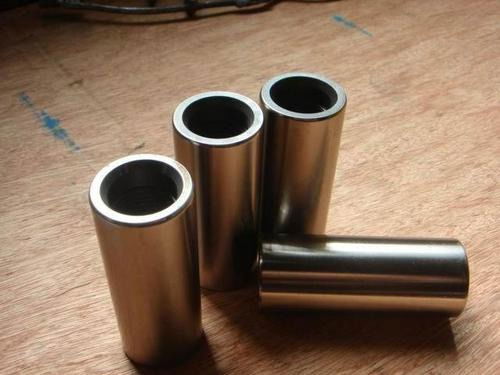

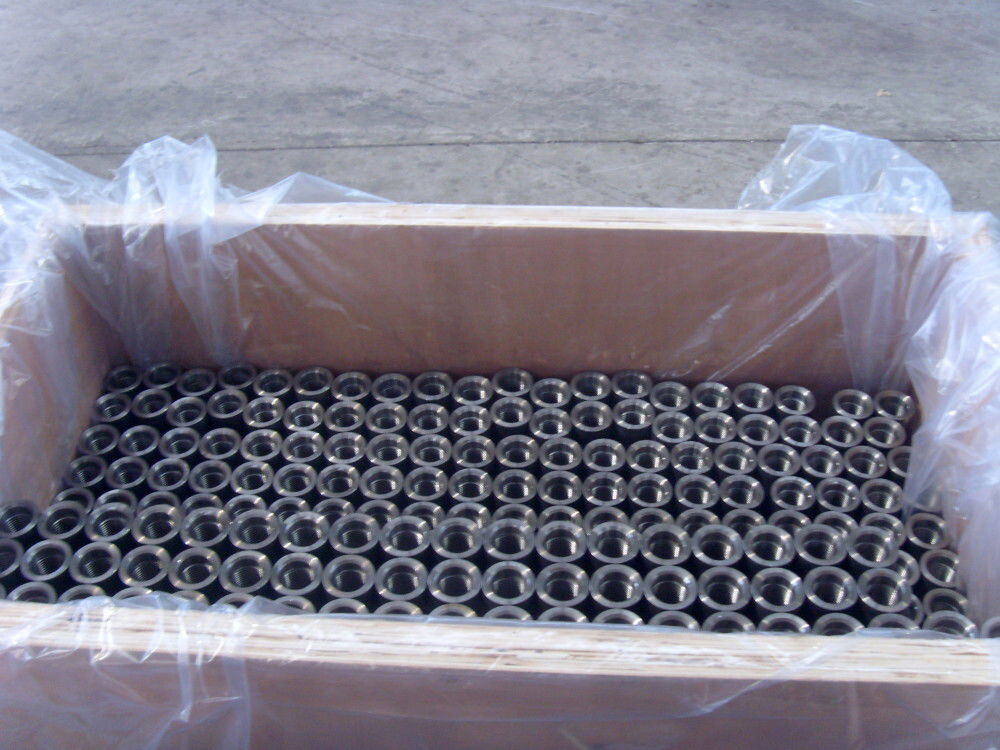

Company pictures
